Product Summary

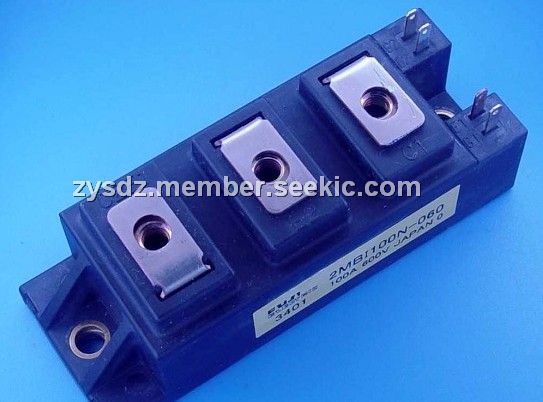

The 2MBI100N-060 is an IGBT module. The applications of the 2MBI100N-060 include High Power Switching, A.C. Motor Controls, D.C. Motor Controls and Uninterruptible Power Supply.
Parametrics
2MBI100N-060 absolute maximum ratings: (1)Collector-Emitter Voltage : 600 V; (2)Gate -Emitter Voltage : ± 20 V; (3)Collector Current: 200A; (4)Max. Power Dissipation : 400 W; (5)Operating Temperature : +150 ℃; (6)Storage Temperature : -40 ~ +125 ℃; (7)Isolation Voltage: 2500 V.
Features
2MBI100N-060 features: (1)Square RBSOA; (2)Low Saturation Voltage; (3)Less Total Power Dissipation; (4)Improved FWD Characteristic; (5)Minimized Internal Stray Inductance; (6)Over current Limiting Function (~3 Times Rated Current).

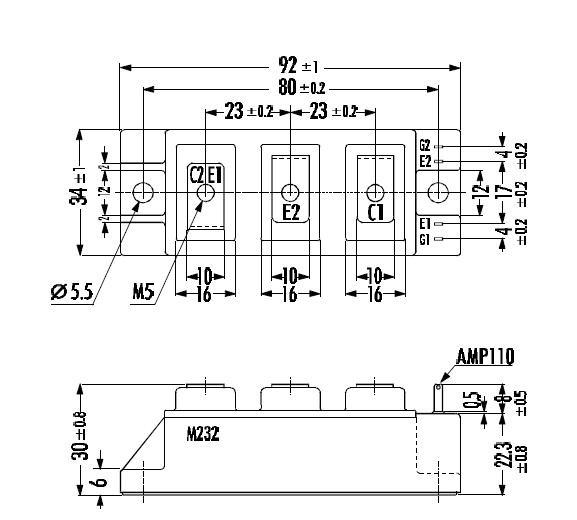

Diagrams
