Product Summary
The DTC114EUA is a Digital transistor.
Parametrics
DTC114EUA absolute maximum ratings: (1)Supply voltage: 50V; (2)Input voltage: -10 to +40V; (3)Output current: 50mA; (4)Power dissipation: 200mW; (5)Junction temperature: 150℃; (6)Storage temperature: -55 to +150℃.
Features
DTC114EUA features: (1)Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see equivalent circuit); (2)The bias resistors consist of thinfilm resistors with complete isolation to allow negative biasing of the input. They also have the advantage of almost completely eliminating parasitic effects; (3)Only the on/off conditions need to be set for operation, making device design easy.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 DTC114EUA |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||||||
 |

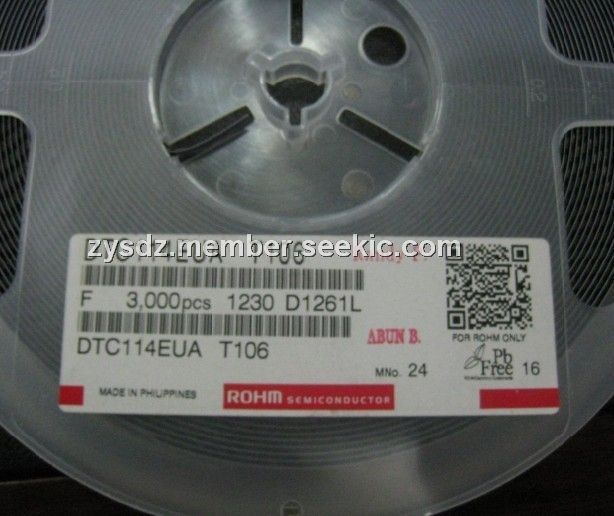

DTC114EUAT106 |
ROHM Semiconductor |
Transistors Switching (Resistor Biased) DIGITL NPN 50V 50MA SOT-323 |
Data Sheet |
|
|
||||||||||||||||
 |
DTC114EUA-TP |
|
TRANS DGTL NPN 200MW SOT-323 |
Data Sheet |
|
|
||||||||||||||||
