Product Summary
The ISL6297CRZ is a Li-ion/Li polymer battery charger. Its applications include PDAs, Cell phones and smart phones, portable instruments, MP3 players, medical handhelds, self-charging battery packs, stand-alone chargers.
Parametrics
ISL6297CRZ absolute maximum ratings: (1)Supply voltage: -0.3 to 7V; (2)All other pins: -0.3 to 5.5V; (3)Ambient temperature range: -20 to 70℃; (4)Supply voltage, VIN: 4.3V to 6.5V; (5)Maximum pin voltage: 5.25V.
Features
ISL6297CRZ features: (1)Complete charger for single-cell Li-ion batteries; (2)Integrated pass element and current sensor; (3)No external blocking diode required; (4)Very low thermal dual-mode operation; (5)Pre-charge circuit verification with LED status indication; (6)Drives a bi-color LED; (7)Pb-free plus anneal available.

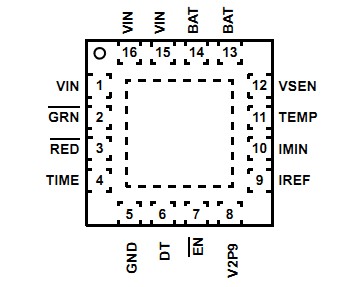

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ISL6297CRZ |
|
IC CHARGER LI-ION POLYMER 16-QFN |
Data Sheet |
|
|
||||||
|

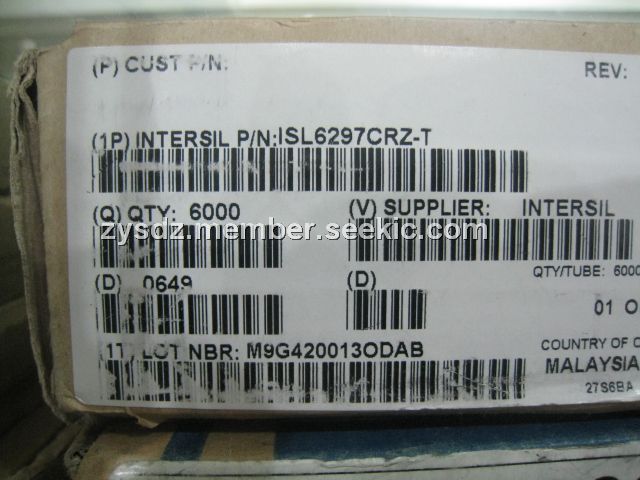

ISL6297CRZ-T |
|
IC CHARGER LI-ION POLYMER 16-QFN |
Data Sheet |
Negotiable |
|
||||||
