Product Summary

The LT1790 is a family of SOT-23 micropower low dropout series references that combine high accuracy and low drift with low power dissipation and small package size. These micropower references use curvature compensation to obtain a low temperature coefficient and trimmed precision thin-film resistors to achieve high output accuracy. In addition, each LT1790 is post-package trimmed to greatly reduce the temperature coefficient and increase the output accuracy. Output accuracy is further assured by excellent line and load regulation. Special care has been taken to minimize thermally induced hysteresis.

The LT1790s are ideally suited for battery-operated systems because of their small size, low supply current and reduced dropout voltage. These references provide supply current and power dissipation advantages over shunt references that must idle the entire load current to operate. Since the LT1790 can also sink current, it can operate as a micropower negative voltage reference with the same performance as a positive reference.

100%new and original,absolutely guarantee!With Entity Authentication and ISCP(In Stock Certified Program).



Among them if you have any need quote or problem, please could you tell us.
E-mail: abel.huang911@gamil.com
MSN:abel.huang@hotmail.com

Features

High Accuracy:
A Grade—0.05% Max
B Grade—0.1% Max
Low Drift:
A Grade—10ppm/°C Max
B Grade—25ppm/°C Max
Low Thermal Hysteresis 40ppm (Typical) –40°C to 85°C
Low Supply Current: 60μA Max
Sinks and Sources Current
Low Dropout Voltage
Guaranteed Operational –40°C to 125°C
Wide Supply Range to 18V
Available Output Voltage Options: 1.25V, 2.048V,2.5V, 3V, 3.3V, 4.096V and 5V
Low Profile (1mm) ThinSOT? Package

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

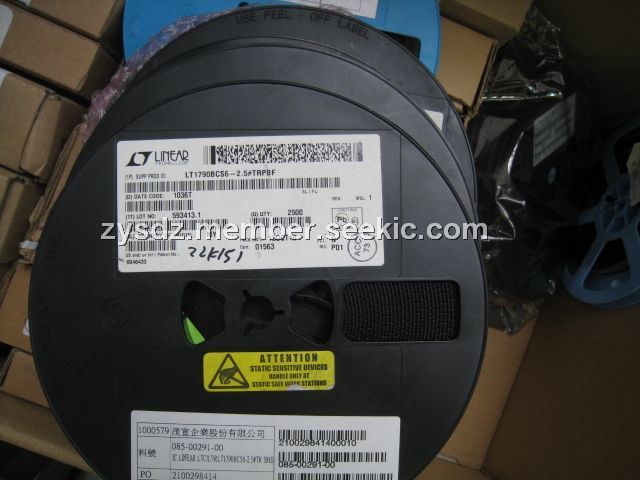

LT1790BCS6-2.5#TRPBF
LT1790BCS6-2.5#TRPBF


IC VREF SERIES 2.5V SOT-23-6

Data Sheet

0-2500: $0.84
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
LT1701-7
LT1701-7


AC-DC BATTERY CHARGER 54.5V 10A

Data Sheet

0-5: $824.73
LT1702-7
LT1702-7


AC-DC BATTERY CHARGER 48V 11A

Data Sheet

0-5: $824.73
LT1711CMS8#PBF
LT1711CMS8#PBF


IC COMP R-RINOUT SINGLE 8-MSOP

Data Sheet

0-1: $2.64
1-25: $1.75
25-100: $1.50
LT1711CMS8#TR
LT1711CMS8#TR


IC COMP R-RINOUT SINGLE 8-MSOP

Data Sheet

0-5000: $1.53
LT1711CMS8
LT1711CMS8


IC COMP R-RINOUT SINGLE 8-MSOP

Data Sheet

0-2900: $1.50
LT1711
LT1711

Other


Data Sheet

Negotiable
