Product Summary
The MAX17030GTL+T is a 1/2/3-Phase Quick-PWM IMVP-6.5 VID Controller.
Parametrics
MAX17030GTL+T absolute maximum ratings: (1)Input voltage range, VCC, VDD: 5.5V; (2)FB output voltage accuracy, VFB: +0.5%; (3)Boot voltage, VBOOT: 1.106V; (4)Line regulation error: 0.1%; (5)GNDS gain, AGNDS: 1.03V/V.
Features
MAX17030GTL+T features: (1)Triple/Dual-phase quick-PWM controllers; (2)2 Internal drivers +1 external driver; (3)7-bit IMVP-6.5 DAC; (4)Dynamic phase selection optimizes active/sleep efficiency; (5)Active voltage positioning with adjustable gain; (5)Accurate lossless current balance and current limit.

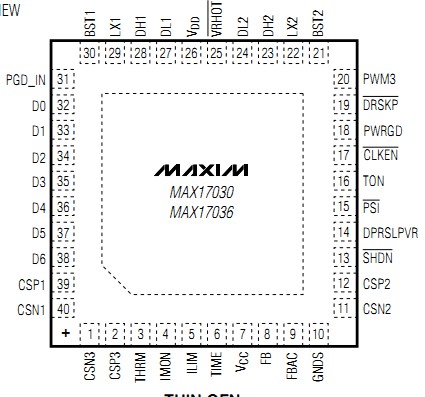

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

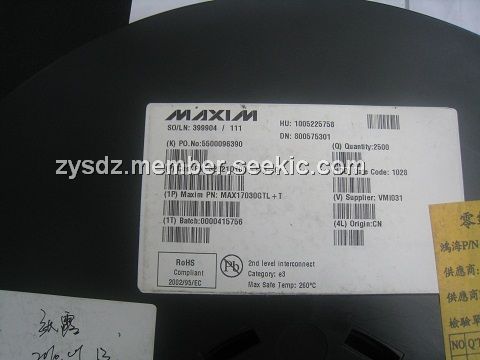

MAX17030GTL+T |
Maxim Integrated Products |
Voltage Mode PWM Controllers 1/2/3-Phase PWM IMVP-6.5 VID Ctlr |
Data Sheet |
|
|
|||||||||||||
