Product Summary

The PMBT3906 is a PNP switching transistor. It is in a SOT23 plastic package. The applications of the PMBT3906 include Telephony and professional communication equipment.

Parametrics

PMBT3906 absolute maximum ratings: (1)VCBO collector-base voltage open emitter: -40 V; (2)VCEO collector-emitter voltage open base: -40 V; (3)VEBO emitter-base voltage open collector: -6 V; (4)IC collector current (DC): -100 mA; (5)ICM peak collector current: -200 mA; (6)IBM peak base current: -100 mA; (7)Ptot total power dissipation Tamb≤25℃: 250 mW; (8)Tstg storage temperature: -65 to +150℃; (9)Tj junction temperature: +150℃; (10)Tamb operating ambient temperature: -65 to +150℃.

Features

PMBT3906 features: (1)Low current (max. 100 mA); (2)Low voltage (max. 40 V).

Diagrams

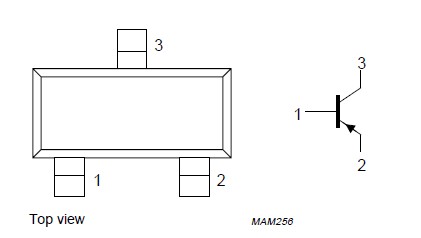

PMBT3906 Pin Configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
PMBT3906
PMBT3906

Other


Data Sheet

Negotiable
PMBT3906 /T3
PMBT3906 /T3

NXP Semiconductors

Transistors Bipolar (BJT) TRANS SW TAPE-11

Data Sheet

Negotiable
PMBT3906,215
PMBT3906,215

NXP Semiconductors

Transistors Bipolar (BJT) PNP SW 200MA 40V

Data Sheet

0-1: $0.03
1-25: $0.01
25-100: $0.01
100-500: $0.01
