Product Summary

The 2DI150Z-120 is a power transistor module. The applications of the 2DI150Z-120 include Power Switching, A.C Motor Controls, D. C Motor Controls and Uninterruptible Power Supply.

Parametrics

2DI150Z-120 absolute maximum ratings: (1)VCBO: 1200V; (2)VEBO: 10V; (3)IC: 150A; (4)ICP: 300A; (5)IB: 8A; (6)PC: 1000W; (7)TSTG: -40 to 125℃.

Features

2DI150Z-120 features: (1) High Voltage; (2) Including Free Wheeling Diode; (3) Excellent Safe Operating Area; (4) Insulated Type.

Diagrams

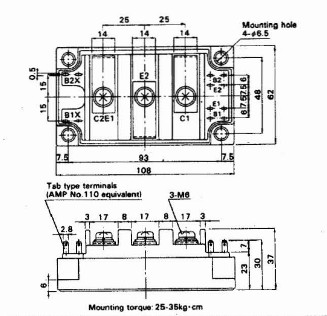

2DI150Z-120 dimension

2DI150M-120
2DI150M-120
Other

Data Sheet
Negotiable
