Product Summary

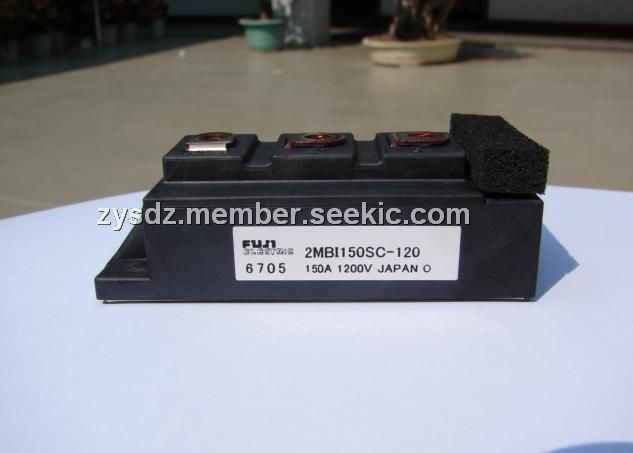

The 2MBI150SC-120 is an IGBT module. The applications of the 2MBI150SC-120 include High Power Switching, A.C. Motor Controls, D.C. Motor Controls and Uninterruptible Power Supply.
Parametrics
2MBI150SC-120 absolute maximum ratings: (1)Collector-Emitter Voltage : 1200 V; (2)Gate -Emitter Voltage : ± 20 V; (3)Collector Current: 150A; (4)Max. Power Dissipation : 1000 W; (5)Operating Temperature : +150 ℃; (6)Storage Temperature : -40 ~ +125 ℃; (7)Isolation Voltage: 2500 V.
Features
2MBI150SC-120 features: (1)NPT-Technology; (2)Square SC SOA at 10 x IC; (3)High Short Circuit Withstand-Capability; (4)Small Temperature Dependence of the Turn-Off Switching Loss; (5)Low Losses And Soft Switching.

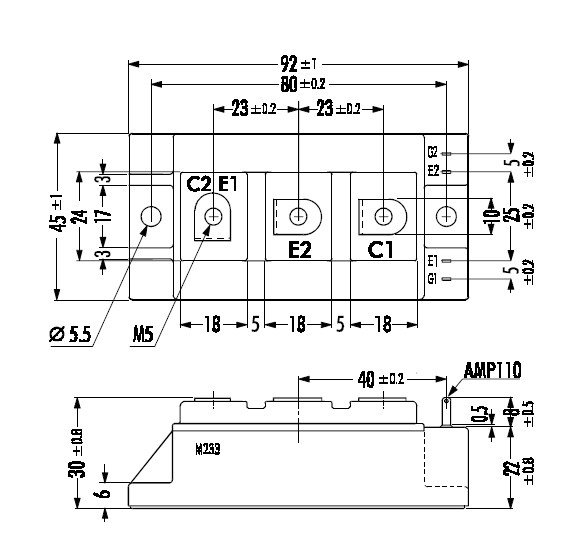

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 2MBI150SC-120 |
Other |
|
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
2MBI150SC-120 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
