Product Summary

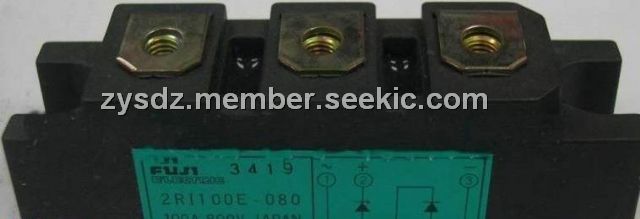

The 2RI100E-080 is a power diode module. The applications of the 2RI100E-080 include Inverters for AC motors, Power supply units for DC motors, DC power supply units for battery chargers and General purpose DC power supply units.

Parametrics

2RI100E-080 absolute maximum ratings: (1)Repetitive peak reverse voltage: 800 V; (2)Non-repetitive peak reverse voltage: 880 V; (3)Average forward current: 2 x 100 A; (4)Surge current: 2000 A; (5)Junction temperature: -40 to +150 ℃; (6)Storage temperature: -40 to +150 ℃; (7)Tightening torque: 25± 5 kgcm; (8) Vibration resistance: 5 G.

Features

2RI100E-080 features: (1)All the terminals and the mounting plate are electrically isolated. These modules can be installed in the same cooling fin as other modules, thus saving installat ion space -a cost-effective feature.; (2)The diode chips are coated with a glass of zinc oxide, making them highly resistant to temperature and humidity variation.; (3)Two diodes chips are connected in series internally, so allowing the rectifying circuit to be simplified.

Diagrams

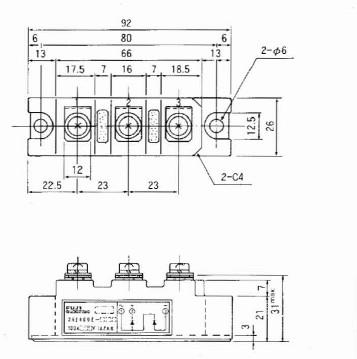

2RI100E-080 dimension
