Product Summary
The 6MBP100RTA060-01 is an IGBT module.
Parametrics
6MBP100RTA060-01 absolute maximum ratings: (1)DC bus voltage: 0 to 450V; (2)DC bus voltage (surge): 0 to 500V; (3)DC bus voltage (short operating): 200 to 400V; (4)Collector-Emitter voltage: 0 to 600V; (5)INV Collector current DC: 100A; (6)Junction temperature: 150℃; (7)Input voltage of power supply for Pre-Driver: -0.5 to 20V; (8)Input signal voltage: -0.5 to VCC+0.5V; (9)Input signal current: 3mA.
Features
6MBP100RTA060-01 features: (1)Temperature protection provided by directly detecting the junction temperature of the IGBTs; (2)Low power loss and soft switching; (3)High performance and high reliability IGBT with overheating protection; (4)Higher reliability because of a big decrease in number of parts in built-in control circuit.

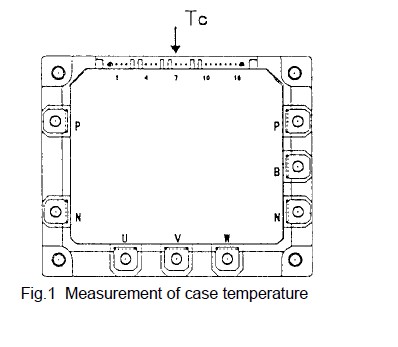

Diagrams
 |
