Product Summary

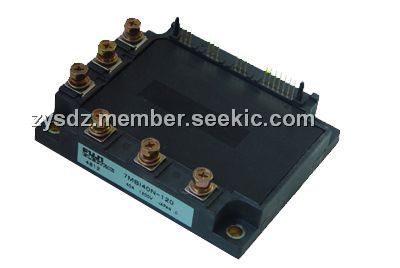

The 7MBI40N-120 is an IGBT module.
Parametrics
7MBI40N-120 absolute maximum ratings: (1)Collector-Emitter Voltage : 1200 V; (2)Gate -Emitter Voltage : ± 20 V; (3)Collector Current: 15A; (4) Collector Power Dissipation : 120 W; (5)Operating Temperature : +150 ℃; (6)Storage Temperature : -40 ~ +125 ℃; (7)Isolation Voltage: 2500 V.
Features
7MBI40N-120 features: (1)Including Brake Chopper; (2)Square RBSOA; (3)Low Saturation Voltage; (4)Over current Limiting Function ( 4 ~ 5 Times Rated Current ).

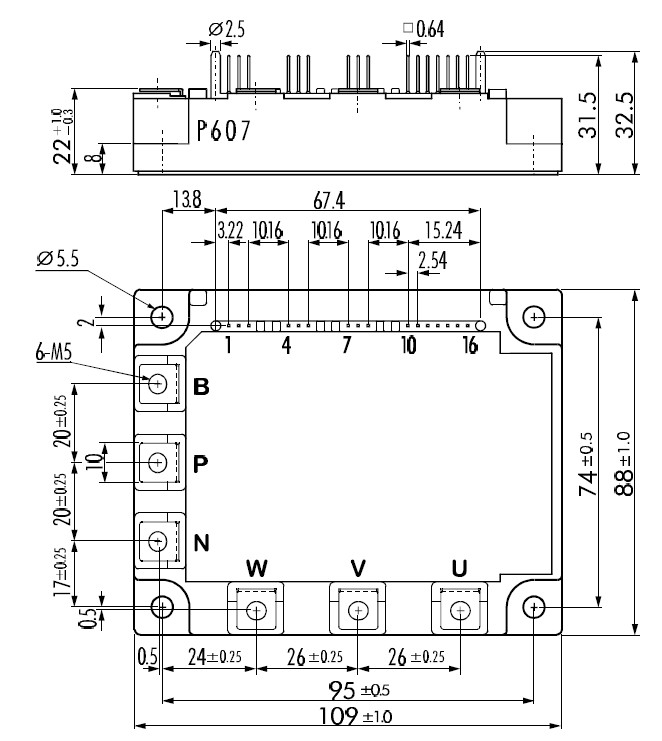

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 7MBI40N-120 |
Other |
|
Data Sheet |
Negotiable |
|
||||
