Product Summary

The AD7541ABQ is a Digital To Analog Converter.

Parametrics

AD7541ABQ absolute maximum ratings: (1)VDD to GND : +17 V; (2)VREF to GND : ±25 V; (3)VRFB to GND : ±25 V; (4)Digital Input Voltage to GND : –0.3 V, VDD + 0.3 V; (5)OUT 1, OUT 2 to GND : –0.3 V, VDD + 0.3 V; (6)Power Dissipation (Any Package) To +75℃ : 450 mW; (7)Derates above +75℃ : 6 mW/℃; (8)Operating Temperature Range: –25℃ to +85℃; (9)Storage Temperature: –65℃ to +150℃; (10)Lead Temperature (Soldering, 10 secs): +300℃.

Features

AD7541ABQ features: (1)Improved Version of AD7541; (2)Full Four-Quadrant Multiplication; (3)12-Bit Linearity (Endpoint); (4)All Parts Guaranteed Monotonic; (5)TTL/CMOS Compatible; (6)Low Cost; (7)Protection Schottky Diodes Not Required; (8)Low Logic Input Leakage.

Diagrams

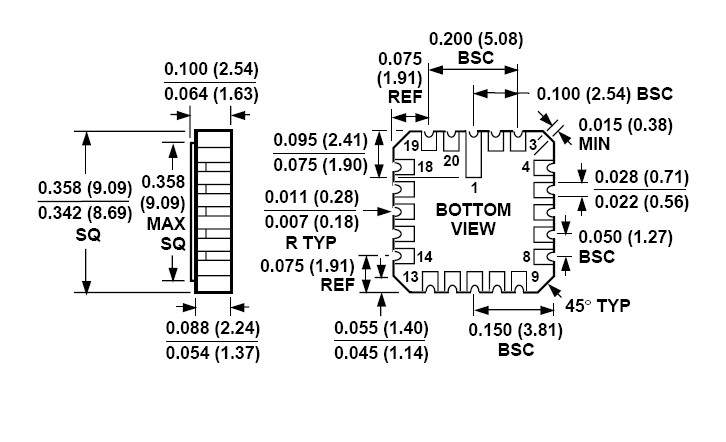

AD7541ABQ dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD7541ABQ
AD7541ABQ

IC DAC 12BIT MULT MONO 18-CDIP
Data Sheet
0-21: $10.48
