Product Summary

The CA3080M96 is Gatable-Gain Blocks which utilize the unique operational-transconductanceamplifier (OTA) concept described in Application Note AN6668, “Applications of the CA3080M96 High- Performance Operational Transconductance Amplifiers”. The CA3080M96 has differential input and a single-ended, push-pull, class A output. In addition, these types have an amplifier bias input which may be used either for gating or for linear gain control. These types also have a high output impedance and their transconductance (gM) is directly proportional to the amplifier bias current (IABC). The applications of the CA3080M96 include Sample and Hold, Multiplier, Multiplexer, Comparator and Voltage Follower.

Parametrics

CA3080M96 absolute maximum ratings: (1)Supply Voltage (Between V+ and V- Terminal): 36V; (2)Differential Input Voltage: 5V; (3)Input Voltage: V+ to VInput; (4)Signal Current: 1mA; (5)Amplifier Bias Current (IABC): 2mA; (6)Output Short Circuit Duration (Note 1): No Limitation.

Features

CA3080M96 features: (1)Slew Rate (Unity Gain, Compensated): 50V/μs; (2)Adjustable Power Consumption: 10μW to 30μW; (3)Flexible Supply Voltage Range: ±2V to ±15V; (4)Fully Adjustable Gain: 0 to gMRL Limit; (5)Tight gM Spread: 2:1; (6)Extended gM Linearity: 3 Decades.

Diagrams

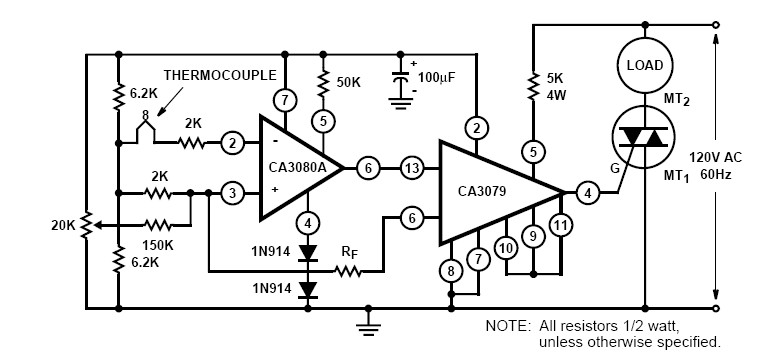

CA3080M96 block diagram
