Product Summary
The CX74063-26 is a RF transceiver for multi-band GSM, GPRS, and EDGE applications with power ramping controller and integrated crystal oscillator with 26MHz output.
Parametrics
CX74063-26 absolute maximum ratings: (1)Supply voltage: 3.6V; (2)Ambient operating temperature range: -40 to 95℃; (3)Storage temperature range: -50 to 125℃; (4)Input voltage range: VCC V; (5)Maximum power dissipation: 600mW.
Features
CX74063-26 features: (1)Three separate LNAs with single-ended inputs; (2)Gain selectable in 2dB steps; (3)Integrated receive baseband filters with tunable bandwidth; (4)Integrated DC offset corrction sequencer; (5)Reduced filtering requirements with translational loop.

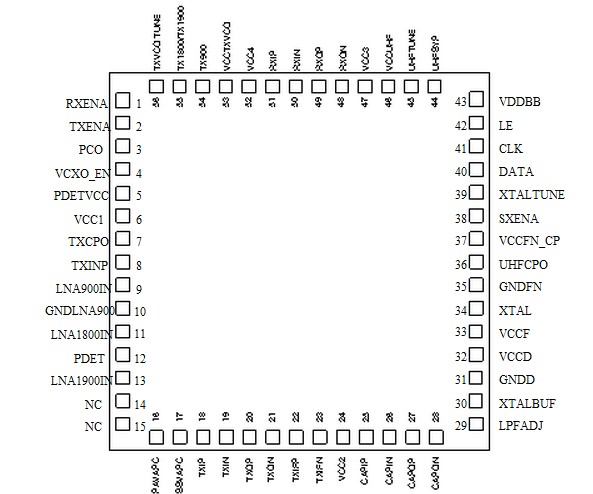

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 CX74063-26 |
Other |
|
Data Sheet |
Negotiable |
|
||||
