Product Summary
The DS90CF384AMTD is a Flat Panel Display. The DS90CF384AMTD receiver converts the four LVDS data streams (Up to 1.8 Gbps throughput or 227 Megabytes/sec bandwidth) back into parallel 28 bits of CMOS/TTL data (24 bits of RGB and 4 bits of Hsync, Vsync, DE and CNTL). Also available is the DS90CF384AMTD that converts the three LVDS data streams (Up to 1.3 Gbps throughput or 170 Megabytes/ sec bandwidth) back into parallel 21 bits of CMOS/TTL data (18 bits of RGB and 3 bits of Hsync, Vsync and DE). Both Receivers’ outputs are Falling edge strobe. A Rising edge or Falling edge strobe transmitter (DS90C383A/DS90C363A) will interoperate with a Falling edge strobe Receiver without any translation logic. The DS90CF384AMTD is enhanced over prior generation receivers and provided a wider data valid time on the receiver output. The DS90CF384AMTD is also offered in a 64 ball, 0.8mm fine pitch ball grid array (FBGA) package which provides a 44 % reduction in PCB footprint compared to the 56L TSSOP package.
Parametrics
DS90CF384AMTD absolute maximum ratings: (1)Supply Voltage (VCC): -0.3V to +4V; (2)CMOS/TTL Input Voltage: -0.3V to (VCC + 0.3V); (3)CMOS/TTL Output Voltage: -0.3V to (VCC + 0.3V); (4)LVDS Receiver Input Voltage: -0.3V to (VCC + 0.3V); (5)Junction Temperature: +150℃; (6)Storage Temperature: -65℃ to +150℃; (7)Lead Temperature (Soldering, 4 sec): +260℃; (8)Solder Reflow Temperature (20 sec for FBGA): +220℃; (9)Maximum Package Power Dissipation Capacity @ 25℃ MTD48 (TSSOP) Package: 1.89 W; (10)Package Derating:DS90CF384AMTD 12.4 mW/℃ above +25℃; (11)ESD Rating (HBM, 1.5 kΩ, 100 pF) > 7 kV.
Features
DS90CF384AMTD features: (1)20 to 65 MHz shift clock support; (2)50% duty cycle on receiver output clock; (3)Best–in–Class Set & Hold Times on RxOUTPUTs; (4)Rx power consumption <142 mW (typ) @65MHz Grayscale; (5)Rx Power-down mode <200μW (max); (6)ESD rating >7 kV (HBM), >700V (EIAJ); (7)Supports VGA, SVGA, XGA and Dual Pixel SXGA.; (8)PLL requires no external components; (9)Compatible with TIA/EIA-644 LVDS standard; (10)Low profile 56-lead or 48-lead TSSOP package; (11)DS90CF384A is also available in a 64 ball, 0.8mm fine pitch ball grid array (FBGA) package.

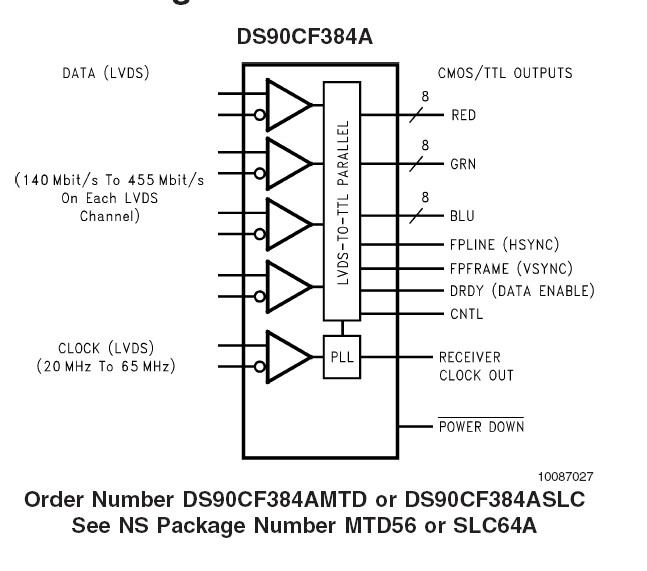

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
DS90CF384AMTD |
National Semiconductor (TI) |
LVDS Interface IC |
Data Sheet |
|
|
|||||||||||||
DS90CF384AMTD/NOPB |
National Semiconductor (TI) |
LVDS Interface IC +3.3V PROG LVDS RCVR FLAT PANEL DISPLAY |
Data Sheet |
|
|
|||||||||||||
DS90CF384AMTDX/NOPB |
National Semiconductor (TI) |
LVDS Interface IC |
Data Sheet |
|
|
|||||||||||||
DS90CF384AMTDX |
National Semiconductor (TI) |
LVDS Interface IC |
Data Sheet |
|
|
