Product Summary

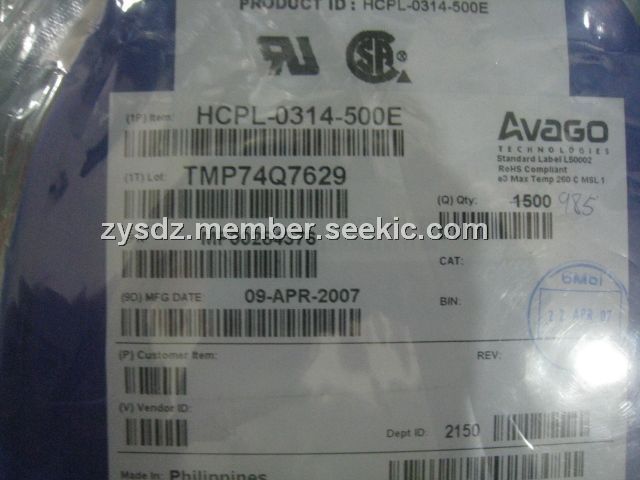

The HCPL-0314-500E is an output current IGBT gate drive Optocoupler.

Parametrics

HCPL-0314-500E absolute maximum ratings: (1)Storage temperature, TS: -55 to 125℃; (2)Operating temperature, TA: -40 TO 100℃; (3)Average input current, IF: 25mA; (4)Peak transient input current, IF: 1A; (5)Reverse input voltage: 5V; (6)Output power dissipation, PO: 250mW.

Features

HCPL-0314-500E features: (1)0.4A minimum peak output current; (2)High speed response; (3)Ultra high CMR; (4)Bootstrappable supply current: maximum 3A; (5)Wide operating temperature range: -40 to 100℃; (6)Available in DIP8 and SO8 package.

Diagrams

HCPL-0314-500E functional diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
HCPL-0314-500E
HCPL-0314-500E

Avago Technologies

High Speed Optocouplers 1Ch 8mA 400mW

Data Sheet

0-890: $0.79
890-1500: $0.74
1500-3000: $0.70
3000-6000: $0.65
