Product Summary

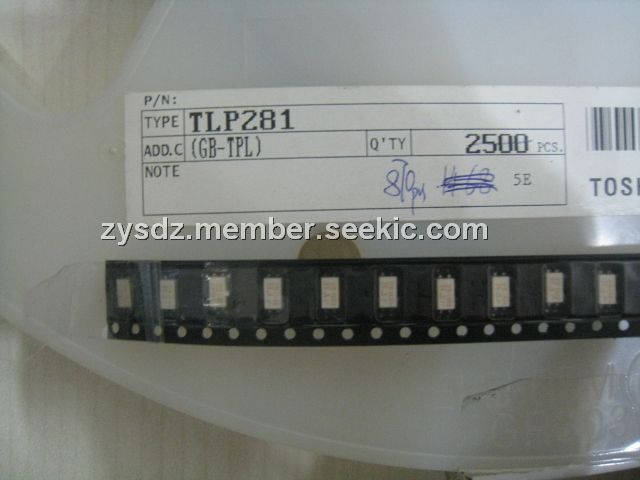

The TLP281GB-TPL is a programmable controller.

Parametrics

TLP281GB-TPL absolute maximum ratings: (1)Forward Current : 50 mA; (2)Pulse Forward Current : 1 A; (3)Reverse Voltage : 5 V; (4)Junction Temperature : 125 ℃; (5)Collector-Emitter Voltage : 80 V; (6)Emitter-Collector Voltage : 7 V; (7)Collector Current : 50 mA; (8)Junction Temperature : 125 ℃; (9)Operating Temperature Range : -55~100 ℃; (10)Storage Temperature Range : -55~125 ℃; (11)Lead Soldering Temperature : 260 (10s) ℃.

Features

TLP281GB-TPL features: (1)Collector-Emitter Voltage : 80 V (MIN); (2)Current Transfer Ratio : 50% (MIN); (3)Rank GB : 100% (MIN); (4)Isolation Voltage : 2500 Vrms (MIN); (5)UL Recognized : UL1577 , File No. E67349.

Diagrams

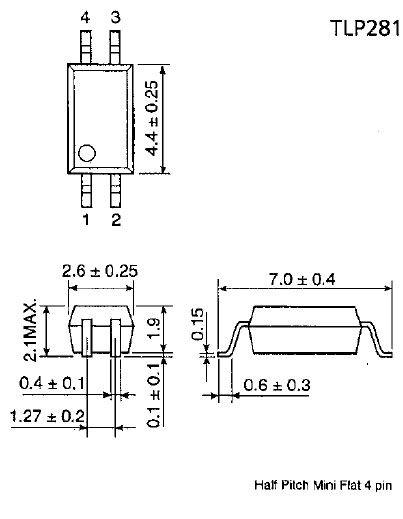

TLP281GB-TPL dimension
