Product Summary

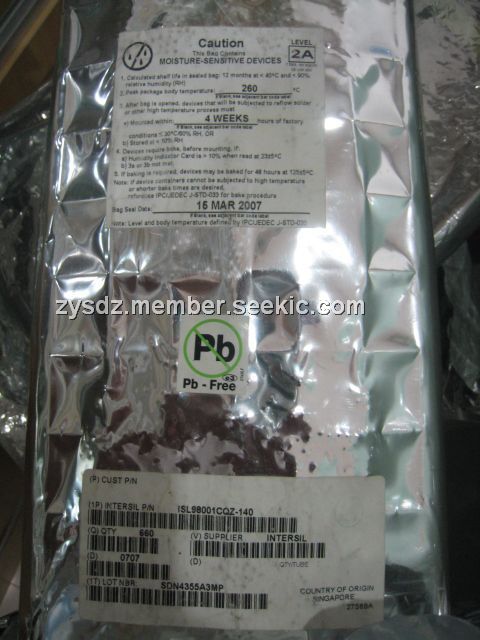

The ISL98001CQZ-140 is a triple video digitizer with digital PLL. Its applications include digital TVs, projectors, multifunction monitors, digital KVM, RGB graphics processing.
Parametrics
ISL98001CQZ-140 absolute maximum ratings: (1)Voltage on VA, VD, VX: 4V; (2)Voltage on any analog input pin: -0.3 to VA; (3)Votlage on any digital input pin: -0.3 to 6V; (4)Current into any output pin: ±20mA; (5)ESD Classification, human body model: 2000V.
Features
ISL98001CQZ-140 features: (1)Extremely ast recovery from VCR head switching; (2)Low PLL clock jitter; (3)Programmable bandwidth; (4)5 embedded voltage regulators allow operation from single 3.3V supply and enhance performance, isolation; (5)2-channel input multiplexer.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ISL98001CQZ-140 |
|

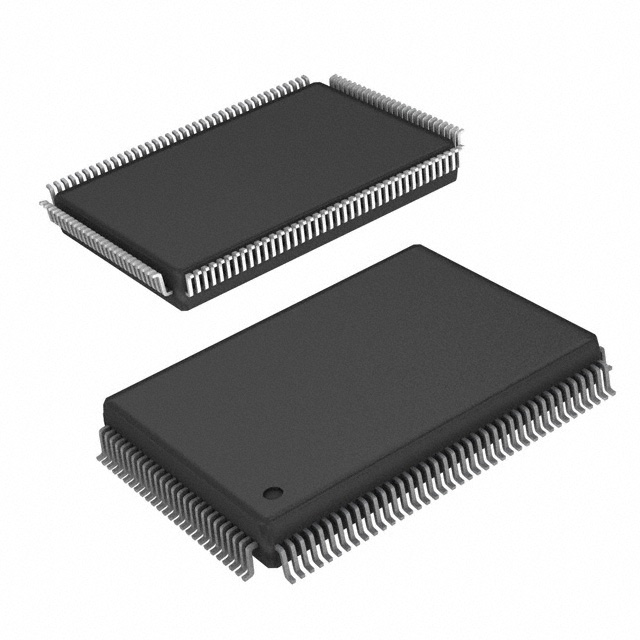

IC TRPL VIDEO DIGITIZER 128-MQFP |
Data Sheet |
|
|
||||||
