Product Summary

The MAX4080TASA+T is a current-sense amplifier with voltage output. Its applications include automotive, 48V telecom and backplane current, measurement, bidirectional motor control, power-management systems, avalanche photodiode and pin-diode current monitoring, general system/board-level current sensing.

Parametrics

MAX4080TASA+T absolute maximum ratings: (1)VCC to GND: -0.3 to 80V; (2)Differential input voltage: ±80V; (3)Current into any pin: ±20mA; (4)Continuous power dissipation: 471mW; (5)Operating temperature range: -40 to 125℃; (6)Junction temperature: 150℃; (7)Storage temperature range: -65 to 150℃; (8)Lead temperature: 300℃.

Features

MAX4080TASA+T features: (1)Wide 4.5 to 76V input common-mode range; (2)Bidirectional or unidirectional iSENSE; (3)Low-cost, compact, current-sense solution; (4)±0.1% Full-scale accuracy; (5)Low 100μV input offset voltage; (6)75μA supply current; (7)Available in a space-saving 8-pin μMax package.

Diagrams

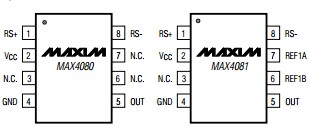

MAX4080TASA+T pin connection
