Product Summary

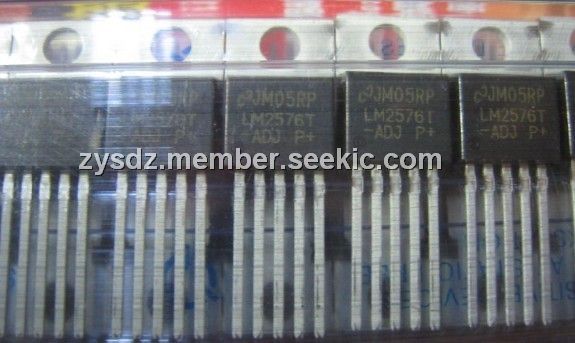

The LM2576 is a 3A Step-Down Voltage Regulator. The LM2576 provides all the active functions for a step-down (buck) switching regulator, capable of driving 3A load with excellent line and load regulation. These devices are available in fixed output voltages of 3.3V, 5V, 12V, 15V, and an adjustable output version. The applications of the LM2576 include n Simple high-efficiency step-down (buck) regulator, Efficient pre-regulator for linear regulators, On-card switching regulators, Positive to negative converter (Buck-Boost).E-mail: abel.huang911@gamil.com
MSN:abel.huang@hotmail.com
Parametrics
LM2576 absolute maximum ratings: (1)Maximum Supply Voltage: 45V; (2)ON /OFF Pin Input Voltage -0.3V ≤ V ≤ +VIN; (3)Output Voltage to Ground (Steady State): -1V; (4)Power Dissipation: Internally Limited; (5)Storage Temperature Range: -65℃ to +150℃; (6)Maximum Junction Temperature: 150℃.
Features
LM2576 features: (1)3.3V, 5V, 12V, 15V, and adjustable output versions; (2)Adjustable version output voltage range, 1.23V to 37V (57V for HV version) ±4% max over line and load conditions; (3)Guaranteed 3A output current; (4)Wide input voltage range, 40V up to 60V for HV version; (5)Requires only 4 external components; (6)52 kHz fixed frequency internal oscillator; (7)TTL shutdown capability, low power standby mode; (8)High efficiency; (9)Uses readily available standard inductors; (10)Thermal shutdown and current limit protection; (11)P+ Product Enhancement tested.
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LM2576-3.3BT |
IC REG BUCK 3.3V 3A TO220-5 |
Data Sheet |
Negotiable |
|
||||||||||||||
LM2576-3.3BU |
IC REG BUCK 3.3V 3A TO263-5 |
Data Sheet |
Negotiable |
|
||||||||||||||
LM2576-3.3BU TR |
IC REG BUCK 3.3V 3A TO263-5 |
Data Sheet |
Negotiable |
|
||||||||||||||
LM2576-3.3WT |
IC REG BUCK 3.3V 3A TO220-5 |
Data Sheet |
|
|
||||||||||||||
LM2576-3.3WU |
IC REG BUCK 3.3V 3A TO263-5 |
Data Sheet |
|
|
||||||||||||||
LM2576-3.3WU TR |
IC REG BUCK 3.3V 3A TO263-5 |
Data Sheet |
|
|
||||||||||||||
LM2576D2T-005G |
ON Semiconductor |
Switching Converters, Regulators & Controllers 5V 3A Buck PWM |
Data Sheet |
|
|
|||||||||||||
LM2576D2T-ADJG |
ON Semiconductor |
Switching Converters, Regulators & Controllers 3A 1.23-37V ADJ Buck PWM |
Data Sheet |
|
|
