LT1940LEFE#TRPBF

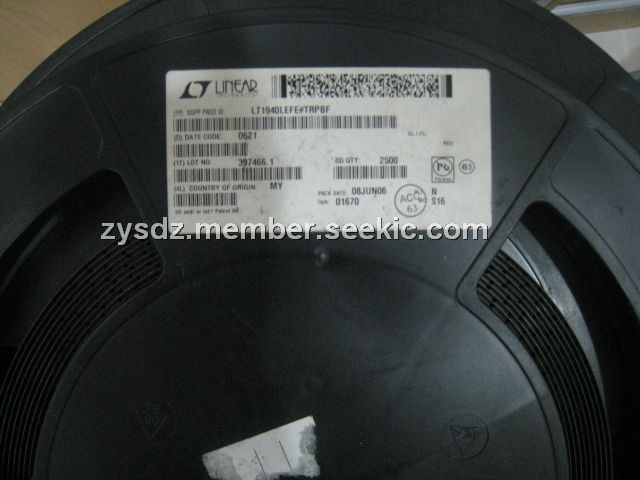

LT1940LEFE#TRPBF, Step-Down Switching Regulator, SSOP, 1.4A, 1.1MHz, Linear Technology

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~1.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~1.50

PartNumber:: LT1940LEFE#TRPBF

Brand:: Linear Technology - Linear | Pack: SSOP | D/C: 06+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Zhao's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-30

From Other Seller

Part Number:LT1940LEFE#TRPBF
US $1.00 - 1.50
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
HT46R47

US $0.35 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

The LT1940LEFE#TRPBF is a Step-Down Switching Regulator. The LT1940LEFE#TRPBF is a dual current mode PWM step-down DC/DC converter with internal 2A power switches. Both converters are synchronized to a single 1.1MHz oscillator and run with opposite phases, reducing input ripple current. The output voltages are set with external resistor dividers, and each regulator has independent shutdown and soft-start circuits. Each regulator generates a power good signal when its output is in regulation, easing power supply sequencing and interfacing with microcontrollers and DSPs. The applications of the LT1940LEFE#TRPBF include Disk Drives, DSP Power Supplies, Wall Transformer Regulation, Distributed Power Regulation, DSL Modems and Cable Modems.

Parametrics

LT1940LEFE#TRPBF absolute maximum ratings: (1)VIN Voltage: (–0.3), 25V; (2)BOOST Pin Voltage: 35V; (3)BOOST Pin Above SW Pin: 25V; (4)PG Pin Voltage: 25V; (5)SHDN, FB Pins: 6V; (6)SW Voltage: VIN; (7)Maximum Junction Temperature: 125℃; (8)Operating Temperature Range (Note 2): –40℃ to 85℃; (9)Storage Temperature Range: –65℃ to 150℃; (10)Lead Temperature (Soldering, 10 sec): 300℃.

Features

LT1940LEFE#TRPBF features: (1)Wide Input Voltage Range: 3.6V to 25V; (2)Two 1.4A Output Switching Regulators with Internal Power Switches; (3)Small 16-Lead TSSOP Surface Mount Package; (4)Constant 1.1MHz Switching Frequency; (5)Anti-Phase Switching Reduces Ripple; (6)Independent Shutdown/Soft-Start Pins; (7)Independent Power Good Indicators Ease Supply Sequencing; (8)Uses Small Inductors and Ceramic Capacitors.
