Product Summary

The LTC1273ACSW#PBF is an A/D Converter. The LTC1273ACSW#PBF is 300ksps, sampling 12-bit A/D converters that draw only 75mW from single 5V or ±5V supplies. The LTC1273ACSW#PBF come complete with 600ns sample-and-holds, precision references and internally trimmed clocks. Unipolar and bipolar conversion modes provide flexibility for various applications. The LTC1273ACSW#PBF is built with LTBiCMOSTM switched capacitor technology. The LTC1273ACSW#PBF has 25ppm/℃ (max) internal references. The LTC1273ACSW#PBF converts 0V to 5V unipolar inputs from a single 5V supply. The LTC1273ACSW#PBF convert ±2.5V and ±5V respectively from ±5V supplies. Maximum DC specifications include ±1/2LSB INL, ±3/4LSB DNL and 25ppm/℃ full scale drift over temperature. Outstanding AC performance includes 70dB S/(N + D) and 77dB THD at the Nyquist input frequency of 150kHz. The applications of the LTC1273ACSW#PBF include

Parametrics

LTC1273ACSW#PBF absolute maximum ratings: (1)Supply Voltage (VDD): 12V; (2)Analog Input Voltage (Note 3): – 0.3V to VDD + 0.3V; (3)Digital Input Voltage (Note 4): –0.3V to 12V; (4)Digital Output Voltage (Note 3): – 0.3V to VDD + 0.3V; (5)Power Dissipation: 500mW; (6)Operating Temperature Range: 0℃ to 70℃; (7)Storage Temperature Range: –65℃ to 150℃; (8)Lead Temperature (Soldering, 10 sec): 300℃.

Features

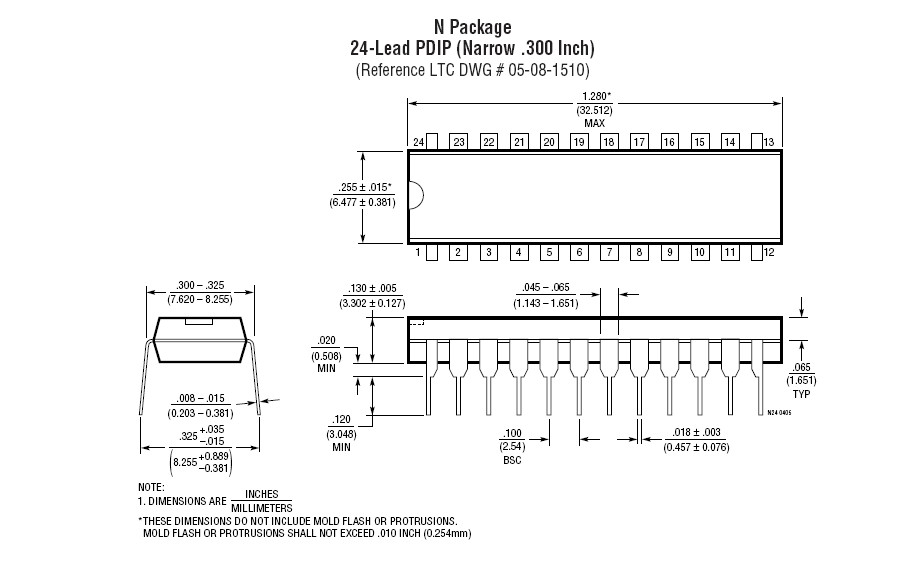

LTC1273ACSW#PBF features: (1)Single Supply 5V or ±5V Operation; (2)300ksps Sample Rate; (3)75mW (Typ) Power Dissipation; (4)On-Chip 25ppm/°C Reference; (5)Internal Synchronized Clock; No Clock Required; (6)High Impedance Analog Input; (7)70dB S/(N + D) and 77dB THD at Nyquist; (8)±1/2LSB INL and ±3/4LSB DNL Max (A Grade); (9)ESD Protected On All Pins; (10)24-Pin Narrow PDIP and SW Packages.
