Product Summary

The LTC1386CS#PBF is a Low Power EIA/TIA562 Transceiver. The LTC1386CS#PBF is an ultra-low power 2-driver/2-receiver EIA/TIA562 transceiver that operates from a single 3.3V supply. The charge pump requires only four space-saving 0.1mF capacitors. The supply current (ICC) of the transceiver is only 200μA with driver outputs unloaded. The LTC1386CS#PBF is fully compliant with all data rate and overvoltage EIA/TIA562 specifications. The transceiver can operate up to 120kbaud with a 1000pF, 3kΩload. Both driver outputs and receiver inputs can be forced to±25V without damage and can survive multiple ±10kV ESD strikes. The applications of the LTC1386CS#PBF include Notebook Computers and Palmtop Computers.

Parametrics

LTC1386CS#PBF absolute maximum ratings : (1)Supply Voltage (VCC): 5V; (2)Input Voltage Driver: – 0.3V to VCC + 0.3V; (3)Receiver: – 25V to 25V; (4)Digital Input: – 0.3V to VCC + 0.3V; (5)Output Voltage Driver: – 25V to 25V; (6)Receiver: – 0.3V to VCC + 0.3V; (7)Short-Circuit Duration V+: 30 sec; (8)V–: 30 sec; (9)Driver Output: Indefinite; (10)Receiver Output: Indefinite; (11)Operating Temperature Range: 0℃ to 70℃; (12)Storage Temperature Range: – 65℃ to 150℃; (13)Lead Temperature (Soldering, 10 sec): 300℃.

Features

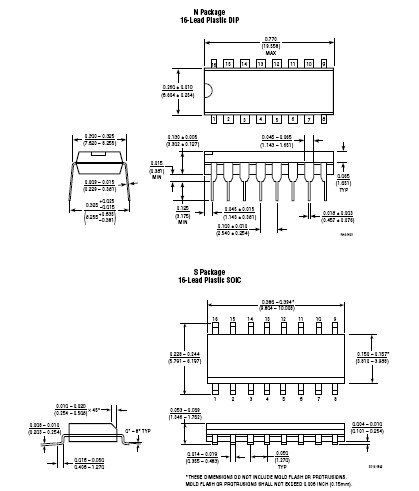

LTC1386CS#PBF features: (1)Operates from a Single 3.3V Supply; (2)Low Supply Current: ICC = 200mA; (3)ESD Protection Over ±10kV; (4)Available in 16-Pin SOIC Narrow Package; (5)Uses Small Capacitors: 0.1mF; (6)Operates to 120kBaud; (7)Output Overvoltage Does Not Force Current Back into Supplies; (8)EIA/TIA562 I/O Lines Can Be Forced to ±25V Without Damage; (9)Pin Compatible with LT1181A.
