Product Summary
The 10-bit LTC1852 and 12-bit LTC1853 are complete 8-channel data acquisition systems. They include a flexible 8-channel multiplexer, a 400ksps successive approximation analog-to-digital converter, an internal reference and a parallel output interface. The multiplexer can be configured for single-ended or differential inputs, two gain ranges and unipolar or bipolar operation. The ADCs have a scan mode that will repeatedly cycle through all 8 multiplexer channels and can also be programmed to sequence through up to 16 addresses and configurations. The sequence can also be read back from internal memory.
The reference and buffer amplifier provide pin strappable ranges of 4.096V, 2.5V and 2.048V. The parallel output includes the 10-bit or 12-bit conversion result plus the 4-bit multiplexer address. The digital outputs are powered from a separate supply allowing for easy interface to 3V digital logic. Typical power consumption is 10mW at 400ksps from a single 5V supply and 3mW at 250ksps from a single 3V supply.
Among them if you have any need quote or problem, please could you tell us.
E-mail: abel.huang911@gamil.com
MSN:abel.huang@hotmail.com
Features
Flexible 8-Channel Multiplexer
Single-Ended or Differential Inputs
Two Gain Ranges
Unipolar or Bipolar Operation
Scan Mode and Programmable Sequencer Eliminate Configuration Software Overhead
Low Power: 3mW at 250ksps
2.7V to 5.5V Supply Range
Internal or External Reference Operation
Parallel Output Includes MUX Address
Nap and Sleep Shutdown Modes
Pin Compatible up-grade 1.25Msps 10-Bit LTC1850 and 12-Bit LTC1851
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

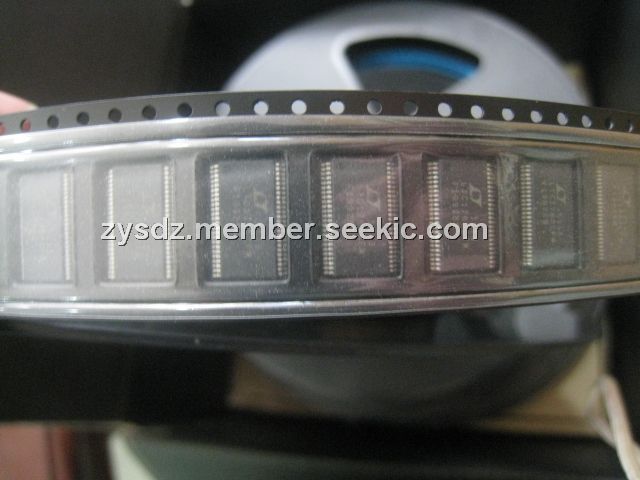

 LTC1852CFW#PBF |
|
IC ADC 8CH 10BIT 400KSPS 48TSSOP |
Data Sheet |
|
|
||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||
 |
LTC1040 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||
 |
LTC1040CN |
|
IC COMPARATOR LOW PWR DUAL 18DIP |
Data Sheet |
|
|
||||||||||
|
LTC1040CN#PBF |
|
IC COMPARATOR LOW PWR DUAL 18DIP |
Data Sheet |
|
|
||||||||||
 |
LTC1040CSW |
|
IC COMPARATOR LOW PWR DUAL18SOIC |
Data Sheet |
|
|
||||||||||
|
LTC1040CSW#PBF |
|
IC COMPARATOR LOW PWR DUAL18SOIC |
Data Sheet |
|
|
||||||||||
|
LTC1040CSW#TR |
|
IC COMPARATOR DUAL LOWPWR 18SOIC |
Data Sheet |
|
|
||||||||||
