Product Summary

The MAX4051ACSE+T is a low-voltage, CMOS analog multiplexer. Its applications include battery-operated equipent, audio and video signal routing, low-voltage data-acquisition systems, communications circuits.

Parametrics

MAX4051ACSE+T absolute maximum ratings: (1)Voltage referenced to GND: -0.3V to +17V; (2)Continuous current into any terminal: ±30mA; (3)Peak current, NO or COM: ±100mA; (4)Continuous power dissipation: 842mW; (5)Operating temperature range:0 to 70℃; (6)Storage temperature reange: -65 to 150℃; (7)Lead temperature: 300℃.

Features

MAX4051ACSE+T features: (1)Guaranteed on-resistance: 100Ω with ±5V supplies; (2)Guaranteed match between channels: 6Ω; (3)Guaranteed low off leakage currents: 1nA at 25℃; (4)Guaranteed low on leakage currents: 0.1nA at 25℃; (5)Single-supply operation from 2.0 to 16V; (6)Low distortion: <0.04%; (7)Low crosstalk: <-90dB; (8)High off isolation: <-90dB.

Diagrams

MAX4051ACSE+T pin configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

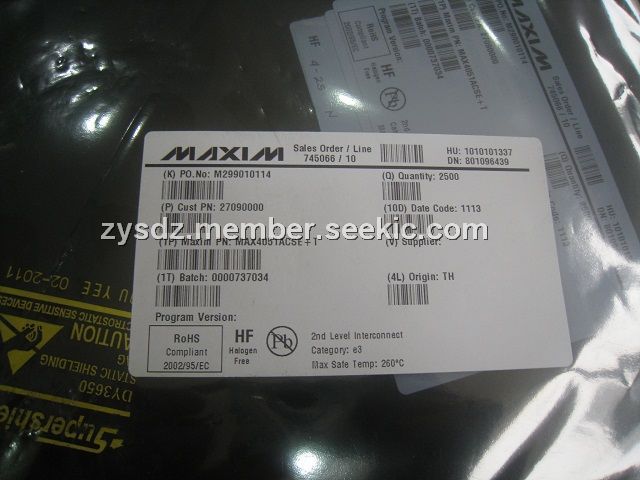

MAX4051ACSE+T
MAX4051ACSE+T

Maxim Integrated Products

Multiplexer Switch ICs 8:1 Low Voltage Analog MUX

Data Sheet

0-2080: $1.19
2080-2500: $1.19
