Product Summary
The MAX5024LASA+ is a low-quiescent-current, high-voltage linear regulator with μP reset and watchdog timer. Its applications include automotive, industrial, home security, telecom/networking.
Parametrics
MAX5024LASA+ aboslute maximum ratings: (1)in to GND: -60 to 70V; (2)OUT to GND: -0.3 to 13.2V; (3)Maximum current to any pin: ±20mA; (4)Continuous power dissipation: 1538mW; (5)Operating temperature range: -40 to 125℃; (6)Lead temperature: 300℃; (7)Storage temperature range: -65 to 150℃.
Features
MAX5024LASA+ features: (1)Wide operating input voltage range 6.5 to 65V; (2)Thermally enhanced 8-pin SO package with exposed pad dissipates 1.5W; (3)Guaranteed 150mA output current; (4)60μA no-load supply current; (5)-60V Reverse-battery protection; (6)Preset 3.3V or 5V output voltage.

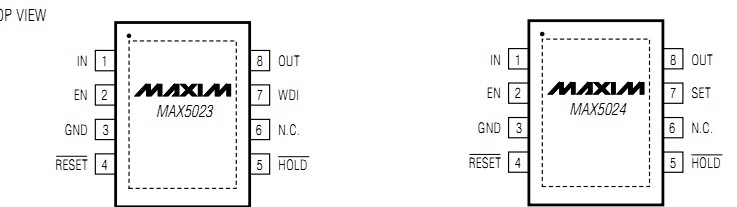

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX5024LASA+ |
Maxim Integrated Products |
Linear Regulators - Standard 65V Low-Q w/uP Reset & Watchdog Timer |
Data Sheet |
|
|
||||||||||||
|
MAX5024LASA+T |
Maxim Integrated Products |
Linear Regulators - Standard 65V Low-Q w/uP Reset & Watchdog Timer |
Data Sheet |
|
|
||||||||||||
