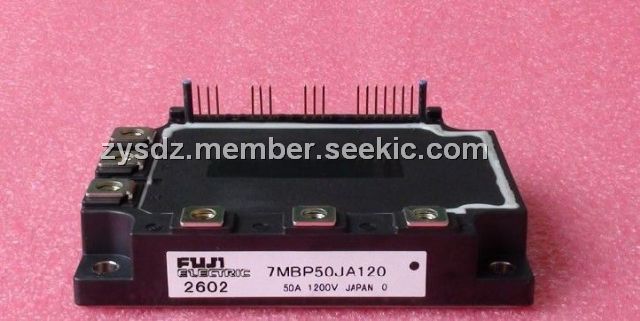

The 7MBP50JA120 is an IGBT module.
Parametrics

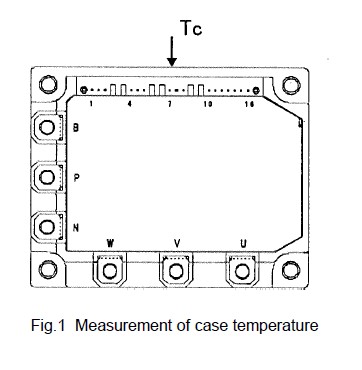

7MBP50JA120 absolute maximum ratings: (1)DC bus voltage: 0 to 900V; (2)DC bus voltage (surge): 0 to 1000V; (3)DC bus voltage (short operating): 200 to 800V; (4)Collector-Emitter voltage: 0 to 1200V; (5)DB Reverse voltage: 1200V; (6)INV Collector current DC:50A; (7)Junction temperature: 150℃; (8)Input voltage of power supply for Pre-Driver: 0 to 20V; (9)Input signal current : 1mA.
Features
7MBP50JA120 features: (1)Temperature protection provided by directly detecting the junction temperature of the IGBTs; (2)Low power loss and soft switching; (3)Compatible with existing IPM-N series packages; (4)High performance and high reliability IGBT with overheating protection; (5)Higher reliability because of a big decrease in number of parts in built-in control circuit.
