Product Summary

The AD8628ARZ is a zero-drift, single-supply, rail-to-rail input/output operational amplifier. Its applications include automotive sensors, pressure and position sensors, strain gage amplifiers, medical instrumentation.

Parametrics

AD8628ARZ absolute maximum ratings: (1)Supply voltage: 6V; (2)Input voltage: GND -0.3V to VS +0.3V; (3)Differential input voltage: ±5V; (4)Storage temperature range: -65 to +150℃; (5)Operating temperature range: -40 to 125℃; (6)Junction temperature range: -65 to 150℃; (7)Lead temperature range: 300℃.

Features

AD8628ARZ features: (1)Lowest auto-zero amplifier noise; (2)Low offset voltage: 1μV; (3)Input offset drift: 0.002μV/℃; (4)Rail-to-rail input and output swing; (5)5V single-supply operation; (6)High gain, CMRR, and PSRR: 120dB; (7)Very low input bias current: 100pA max; (8)Low supply current: 1.0mA; (9)Overload recovery time: 10μs; (10)No external components required.

Diagrams

AD8628ARZ pin configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD8628ARZ
AD8628ARZ

IC OPAMP CHOPPER R-R 30MA 8SOIC
Data Sheet
0-1: $1.63
1-10: $1.47
10-100: $1.18
100-250: $1.05
250-500: $0.92
500-1000: $0.76
1000-2500: $0.71
2500-5000: $0.70
AD8628ARZ-REEL
AD8628ARZ-REEL

IC OPAMP CHOPPER R-R 30MA 8SOIC
Data Sheet
0-2500: $0.71

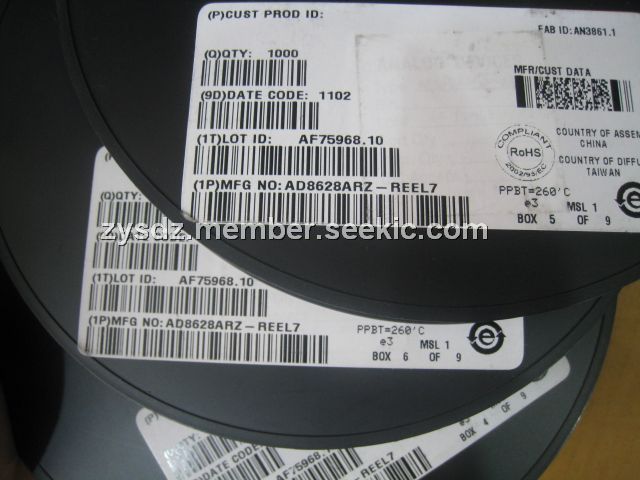

AD8628ARZ-REEL7
AD8628ARZ-REEL7

IC OPAMP CHOPPER R-R 30MA 8SOIC
Data Sheet
0-1000: $0.76
