Product Summary
The ADM2587EBRWZ is a fully integrated signal and power isolated data transceiver with ±15 kV ESD protection and is suitable for high speed communication on multipoint transmission lines. The ADM2587EBRWZ includes an integrated isolated dc-to-dc power supply, which eliminates the need for an external dc-to-dc isolation block. The applications of the ADM2587EBRWZ include Isolated RS-485/RS-422 interfaces, Industrial field networks, Multipoint data transmission systems.
Parametrics
ADM2587EBRWZ absolute maximum ratings: (1)VCC: -0.5 V to +7 V ; (2)Digital Input Voltage (DE, RE, TxD): -0.5 V to VDD + 0.5 V ; (3)Digital Output Voltage (RxD): -0.5 V to VDD + 0.5 V ; (4)Driver Output/Receiver Input Voltage: -9 V to +14 V ; (5)Operating Temperature Range: -40 to +85℃; (6)Storage Temperature Range -55℃ to +150℃ ; (7)ESD (Human Body Model) on A, B, Y, and Z pins: ±15 kV ; (8)ESD (Human Body Model) on Other Pins: ±2 kV ; (9)Lead Temperature Soldering (10 sec): 260℃; (10)Vapor Phase (60 sec): 215℃; (11)Infrared (15 sec): 220℃.
Features
ADM2587EBRWZ features: (1)Isolated RS-485/RS-422 transceiver, configurable as half or full duplex ; (2)isoPower integrated isolated dc-to-dc converter ; (3)±15 kV ESD protection on RS-485 input/output pins ; (4)Complies with ANSI/TIA/EIA-485-A-98 and ISO 8482:1987(E) ; (5)ADM2582E data rate: 16 Mbps ; (6)ADM2587E data rate: 500 kbps ; (7)5 V or 3.3 V operation ; (8)Connect up to 256 nodes on one bus ; (9)Open- and short-circuit, fail-safe receiver inputs ; (10)High common-mode transient immunity: ＞25 kV/μs ; (11)Thermal shutdown protection ; (12)Safety and regulatory approvals (pending) ; (13)UL recognition: 2500 V rms for 1 minute per UL 1577 ; (14)VDE Certificates of Conformity ; (15)DIN V VDE V 0884-10 (VDE V 0884-10):2006-12 ; (16)VIORM = 560 V peak ; (17)Operating temperature range: -40 to +85℃; (18)Highly integrated, 20-lead, wide-body SOIC package.

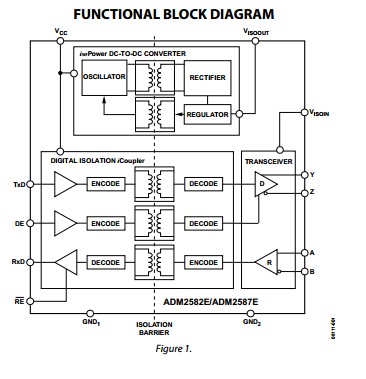

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ADM2587EBRWZ |
|
IC TXRX RS485 ISOLATED 20SOIC |
Data Sheet |
|
|
||||||||||||||||
|
ADM2587EBRWZ-REEL7 |
|
IC TXRX RS485 ISOLATED 20SOIC |
Data Sheet |
|
|
||||||||||||||||
