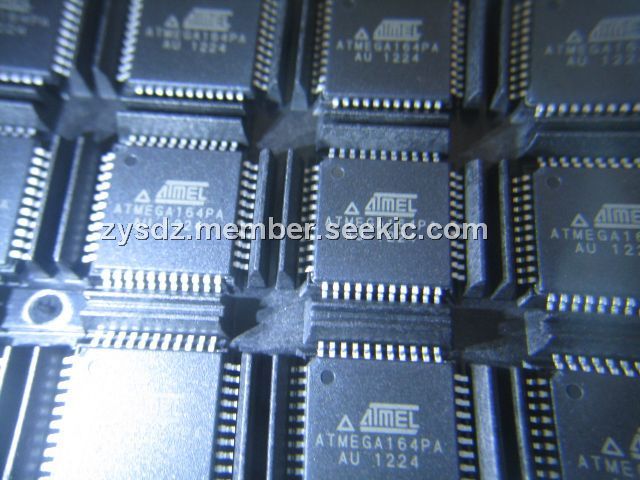

Product Summary

The ATMEGA164PA-AU is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATMEGA164PA-AU achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed.

Parametrics

ATMEGA164PA-AU absolute maximum ratings: (1)Operating Voltages: 1.8 to 5.5V; (2)Speed Grades: 0 to 4 MHz @ 1.8 to 5.5V; 0 to 10 MHz @ 2.7 to 5.5V; 0 to 20 MHz @ 4.5 to 5.5V; (3)Power Consumption at 1 MHz, 1.8V, 25℃; (4)Active: 0.4 mA; (5)Power-down Mode: 0.1μA; (6)Power-save Mode: 0.6μA (Including 32 kHz RTC).

Features

ATMEGA164PA-AU features:(1)High-performance, Low-power AVR 8-bit Microcontroller; (2)Advanced RISC Architecture; (3)High Endurance Non-volatile Memory segments; (4)JTAG (IEEE std. 1149.1 Compliant) Interface; (5)Power-on Reset and Programmable Brown-out Detection; (6)Internal Calibrated RC Oscillator; (7)External and Internal Interrupt Sources; (8)Six Sleep Modes: Idle, ADC Noise Reduction, Power-save, Power-down, Standby and Extended Standby; (9)I/O and Packages.

Diagrams

ATMEGA164PA-AU block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
ATMEGA164PA-AU
ATMEGA164PA-AU

Atmel

8-bit Microcontrollers (MCU) AVR 16KB 512B EE 20MHz 1KB SRAM 125c

Data Sheet

0-395: $1.74
ATMEGA164PA-AUR
ATMEGA164PA-AUR

Atmel

8-bit Microcontrollers (MCU) AVR,16KB FLASH,20MHZ IND TEMP,8V

Data Sheet

0-1665: $1.77
