Product Summary
The DS2417P+ is a 1-wire time chip with interrupt.
Parametrics
DS2417P+ absolute maximum ratings: (1)Voltage on 1-wire to ground: -0.5 to 7V; (2)Operating temperature range: -40 to 85℃; (3)Storage temperature range: -55 to 125℃.
Features
DS2417P+ features: (1)Real-time clock with fully compatible 1-wire microlan interface; (2)Uses the same binary time/date representation as the DS2404 but with 1 second resolution; (3)Clock accuracy ±2minutes per month at 25℃; (4)Programmable interrupt output for system wakeup; (5)Communicates at 16.3kbits per second; (6)8-bit family code specifies device communication requirements to bus master.

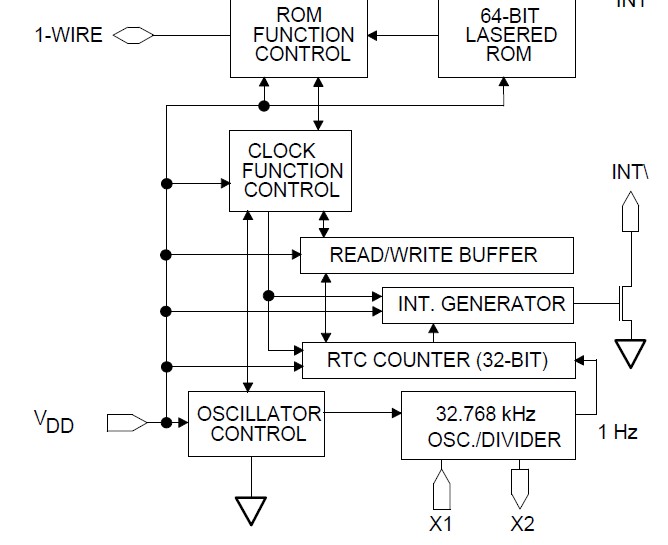

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 DS2417P+ |
Maxim Integrated Products |
Real Time Clock 1-Wire w/Interrupt |
Data Sheet |
|
|
||||||||||||
|
DS2417P+T&R |
Maxim Integrated Products |
Real Time Clock 1-Wire w/Interrupt |
Data Sheet |
|
|
||||||||||||
