Product Summary

The PALCE16V8Q-15JC/4 is an advanced PAL device built with low-power, high-speed, electrically-erasable CMOS technology.

Parametrics

PALCE16V8Q-15JC/4 absolute maximum ratings: (1)Storage temperature: -65 to 150℃; (2)Ambient temperature with power applied: -55 to 125℃; (3)Supply voltage with respect to ground: -0.5 to 7V; (4)DC input voltage: -0.5 to VCC+0.5V; (5)Static discharge voltage: 2001V; (6)Latchup current: 100mA.

Features

PALCE16V8Q-15JC/4 features: (1)Pin and function compatible with all 20-pin GAL devices; (2)Electrically erasable CMOS technology provides reconfigurable logic and full testability; (3)Programmable output polarity; (4)Programmable enable/disable control; (5)Prreloadable output resigters for testability; (6)Automatic register reset on power up.

Diagrams

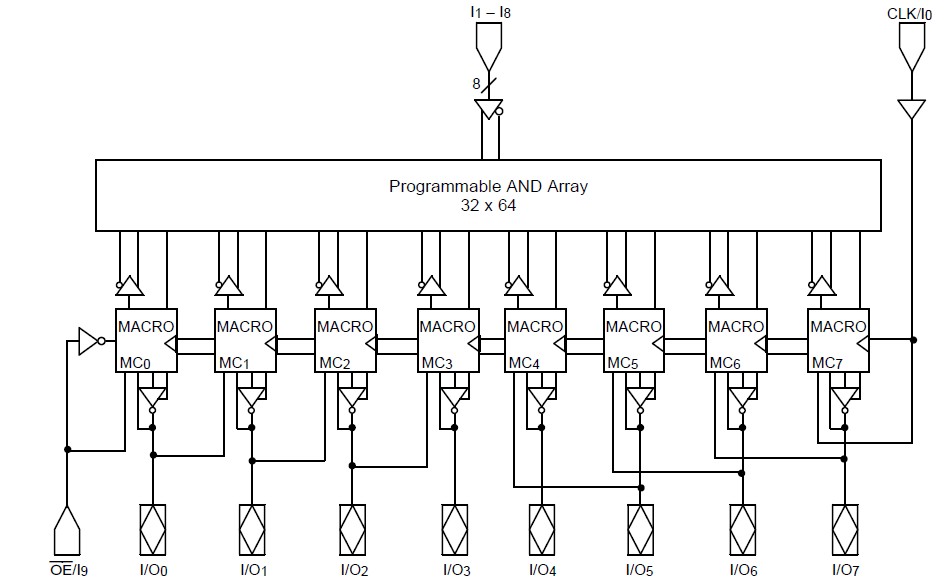

PALCE16V8Q-15JC/4 block diagram
