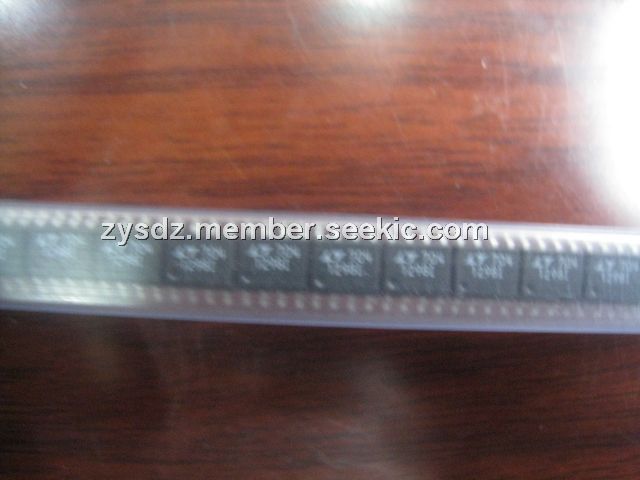

Product Summary
The LT?1259 contains two independent 130MHz current feedback amplifiers, each with a shutdown pin. These amplifiers are designed for excellent linearity while driving cables and other low impedance loads. The LT1260 is a triple version especially suited to RGB video applications. These amplifiers operate on all supplies from single 5V to ±15V and draw only 5mA per amplifier when active. When shut down, the LT1259/LT1260 amplifiers draw zero supply current and their outputs become high impedance. Only two LT1260s are required to make a complete 2-input RGB MUX and cable driver. These amplifiers turn on in only 100ns and turn off in 40ns, making them ideal in spread spectrum and portable equipment applications. The LT1259/LT1260 amplifiers are manufactured on Linear Technology’s proprietary
Among them if you have any need quote or problem, please could you tell us.
E-mail: abel.huang911@gamil.com
MSN:abel.huang@hotmail.com
Features
Features
90MHz Bandwidth on ±5V
0.1dB Gain Flatness >30MHz
Completely Off in Shutdown, 0μA Supply Current
High Slew Rate: 1600V/μs
Wide Supply Range: ±2V(4V) to ±15V(30V)
0mA Output Current
Low Supply Current: 5mA/Amplifier
Differential Gain: 0.016%
Differential Phase: 0.075°
Fast Turn-On Time: 100ns
Fast Turn-Off Time: 40ns
14-Pin and 16-Pin Narrow SO Packages
![]() |
