LTC1144CS8#TRPBF

Product Summary

The LTC1144CS8#TRPBF is a Switched-Capacitor Wide Input Range Voltage Converter. The LTC1144CS8#TRPBF is a monolithic CMOS switched-capacitor voltage converter. It performs supply voltage conversion from positive to negative from an input range of 2V to 18V, resulting in complementary output voltages of –2V to –18V. Only two noncritical external capacitors are needed for the charge pump and charge reservoir functions. The converter has an internal oscillator that can be overdriven by an external clock or slowed down when connected to a capacitor. The oscillator runs at a 10kHz frequency when unloaded. A higher frequency outside the audio band can also be obtained if the Boost Pin is tied to V+. The SHDN pin reduces supply current to 8mA and can be used to save power when the converter is not in use. The LTC1144CS8#TRPBF contains an internal oscillator, divide-bytwo, voltage level shifter, and four power MOSFETs. A special logic circuit will prevent the power N-channel switch substrate from turning on. The applications of the LTC1144CS8#TRPBF include Conversion of 15V to ±15V Supplies, Inexpensive Negative Supplies, Data Acquisition Systems, High Voltage Upgrade to LTC1044 or 7660, Voltage Division and Multiplications, Automotive Applications and Battery Systems with Wall Adapter/Charger.

Parametrics

LTC1144CS8#TRPBF absolute maximum ratings: (1)Supply Voltage (V+) (Transient): 20V; (2)Supply Voltage (V+) (Operating): 18V; (3)Input Voltage on Pins 1, 6, 7 (Note 2): – 0.3V < VIN < (V+) + 0.3V; (4)Output Short-Circuit Duration V+ ≤ 10V: Indefinite; (5)V + ≤ 15V: 30 sec; (6)V + ≤ 20V: Not Protected; (7)Power Dissipation: 500mW; (8)Operating Temperature Range: 0℃ to 70℃; (9)Storage Temperature Range: –65℃ to 150℃; (10)Lead Temperature (Soldering, 10 sec): 300℃.

Features

LTC1144CS8#TRPBF features: (1)Wide Operating Supply Voltage Range: 2V to 18V; (2)Boost Pin (Pin 1) for Higher Switching Frequency; (3)Simple Conversion of 15V to –15V Supply; (4)Low Output Resistance: 120Ω aximum; (5)Power Shutdown to 8mA with SHDN Pin; (6)Open Circuit Voltage Conversion Efficiency: 99.9% Typical; (7)Power Conversion Efficiency: 93% Typical; (8)Easy to Use.

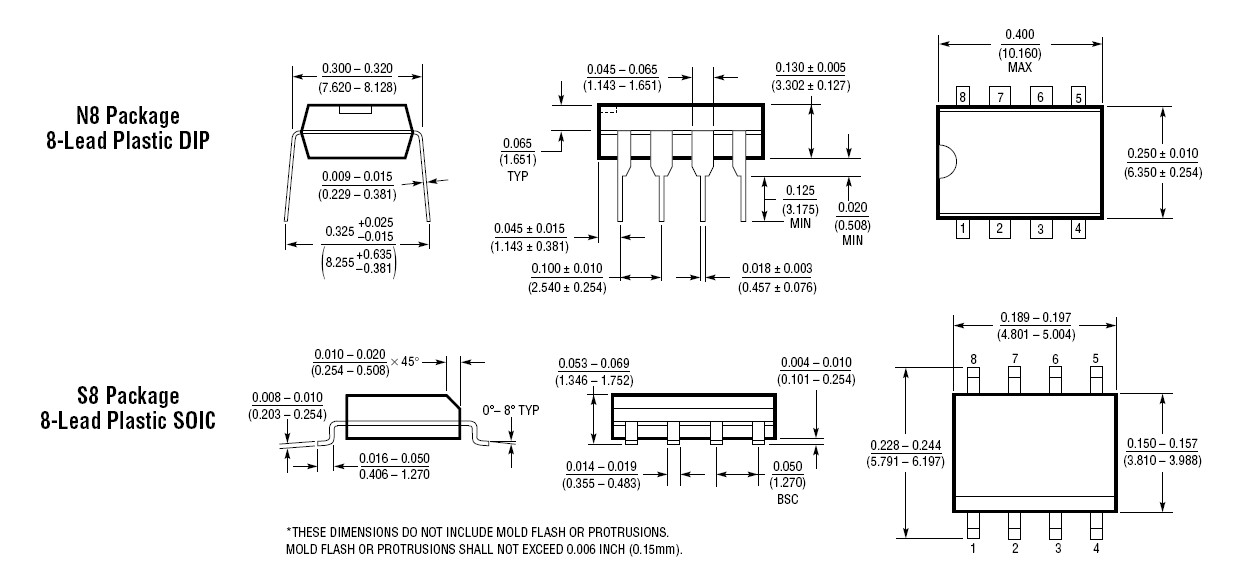

Diagrams
