Product Summary
The LTC2220IUP#PBF is an Analog Digital Converter. The LTC2220IUP#PBF is a 185Msps, sampling 12-bit A/D converter designed for digitizing high frequency, wide dynamic range signals. The LTC2220IUP#PBF is perfect for demanding communications applications with AC performance that includes 67.5dB SNR and 80dB spurious free dynamic range for signals up to 170MHz. Ultralow jitter of 0.15psRMS allows undersampling of IF frequencies with excellent noise performance. DC specs include ±0.7LSB INL (typ), ±0.5LSB DNL (typ) and no missing codes over temperature. The transition noise is a low 0.5LSBRMS. The digital outputs can be either differential LVDS, or single-ended CMOS. There are three format options for the CMOS outputs: a single bus running at the full data rate or two demultiplexed buses running at half data rate with either interleaved or simultaneous update. A separate output power supply allows the CMOS output swing to range from 0.5V to 3.6V. The applications of the LTC2220IUP#PBF include Wireless and Wired Broadband Communication, Cable Head-End Systems, Power Amplifier Linearization and Communications Test Equipment.
Parametrics
LTC2220IUP#PBF absolute maximum ratings: (1)Supply Voltage (VDD): 4V; (2)Digital Output Ground Voltage (OGND): –0.3V to 1V; (3)Analog Input Voltage (Note 3): –0.3V to (VDD + 0.3V); (4)Digital Input Voltage: –0.3V to (VDD + 0.3V); (5)Digital Output Voltage: –0.3V to (OVDD + 0.3V); (6)Power Dissipation: 1500mW; (7)Operating Temperature Range: –40℃ to 85℃; (8)Storage Temperature Range: –65℃ to 125℃.
Features
LTC2220IUP#PBF features: (1)Sample Rate: 185Msps; (2)67.5dB SNR up to 140MHz Input; (3)80dB SFDR up to 170MHz Input; (4)775MHz Full Power Bandwidth S/H; (5)Single 3.3V Supply; (6)Low Power Dissipation: 910mW; (7)LVDS, CMOS, or Demultiplexed CMOS Outputs; (8)Selectable Input Ranges: ±0.5V or ±1V; (9)No Missing Codes; (10)Optional Clock Duty Cycle Stabilizer; (11)Shutdown and Nap Modes; (12)Data Ready Output Clock.

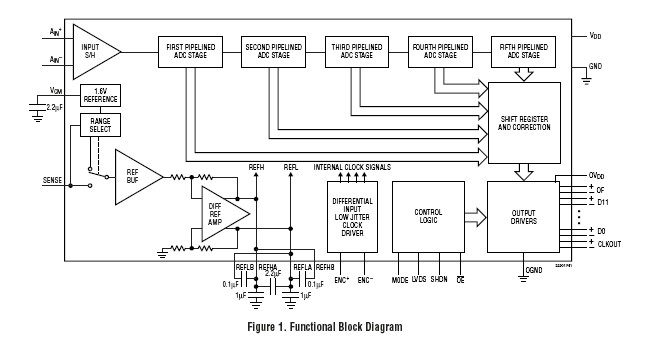

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() LTC2220IUP#PBF |
![]() |
![]() IC ADC 12BIT 170MSPS 64-QFN |
![]() Data Sheet |
![]()
|
|
||||||||||
