Product Summary

The LTC3561EDD#TRPBF is a synchronous step-down DC/DC converter. Its applications include wirless LAN power, notebook computers, digital cameras, cellular phones, board mounted power supplies.

Parametrics

LTC3561EDD#TRPBF absolute maximum ratings: (1)PVIN, SVIN voltage: -0.3 to 6V; (2)VFB, SHDN/RT voltages: -0.3 to VIN+0.3V; (3)ITH voltage: -0.3 to 1.4V; (4)SW voltage: -0.3 to VIN +0.3V; (5)Operating ambient temperature range: -40 to 85℃; (6)Junction temperature: 125℃; (7)Storage temperature range: -65 to 125℃.

Features

LTC3561EDD#TRPBF features: (1)Uses tiny capacitors and inductor; (2)High frequency operationg: up to 4MHz; (3)High switch current: 1.4A; (4)Low RDS internal switches: 0.110Ω; (5)High efficiency: up to 95%; (6)VIN: 2.63 to 5.5V.

Diagrams

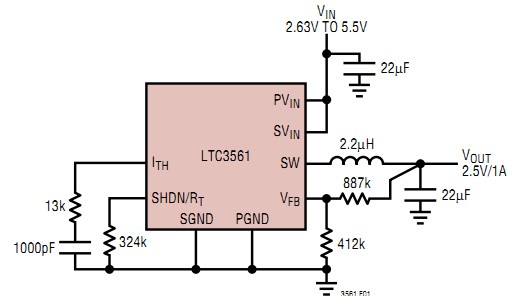

LTC3561EDD#TRPBF circuit

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
LTC3561EDD#TRPBF
LTC3561EDD#TRPBF


IC REG BUCK SYNC ADJ 1A 8DFN

Data Sheet

0-2500: $1.79
