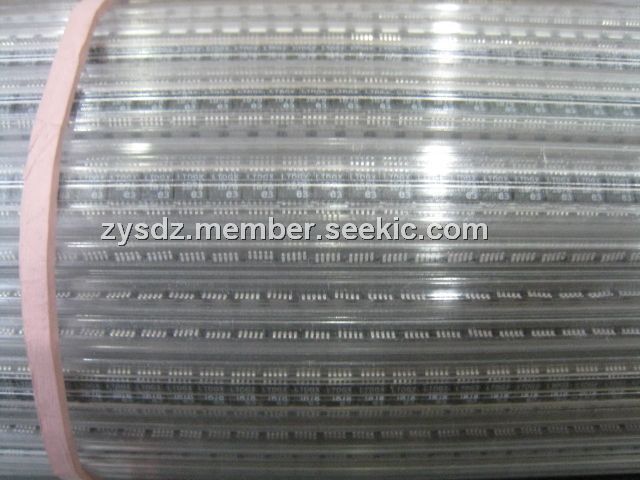

LTC3704EMS#PBF

LTC3704 - Wide Input Range, No RSENSE Positive-to-Negative DC/DC Controller

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.30~1.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.30~1.50

PartNumber:: LTC3704EMS#PBF

Brand:: Linear Technology - Linear | Pack: MSOP | D/C: 06+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Zhao's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-18

From Other Seller

Part Number:LTC3704EMS#PBF
US $1.30 - 1.50
ad7716ap

US $1.13 - 1.13 / Piece
(0) Remove
HCPL-7800A

US $2.50 - 4.10 / Piece
(0) Remove
Quantity:

piece

Product Summary

The LTC3704 is a wide input range, current mode, positive-to-negative DC/DC controller that drives an N-channel power MOSFET and requires very few external components. Intended for low to high power applications, it eliminates the need for a current sense resistor by utilizing the power MOSFET’s on-resistance, thereby maximizing efficiency.

The IC’s operating frequency can be set with an external resistor over a 50kHz to 1MHz range, and can be synchronized to an external clock using the MODE/SYNC pin. Burst Mode operation at light loads, a low minimum operating supply voltage of 2.5V and a low shutdown quiescent current of 10μA make the LTC3704 ideally suited for battery-operated systems.

For applications requiring constant frequency operation, the Burst Mode operation feature can be defeated using the MODE/SYNC pin. Higher than 36V switch voltage applications are possible with the LTC3704 by connecting the SENSE pin to a resistor in the source of the power MOSFET.

The LTC3704 is available in the 10-lead MSOP package.

Among them if you have any need quote or problem, please could you tell us.
E-mail: abel.huang911@gamil.com
MSN:abel.huang@hotmail.comtely guarantee！With Entity Authentication and ISCP(In Stock Certified Program).

Features

High Efficiency Operation (No Sense Resistor Required)
Wide Input Voltage Range: 2.5V to 36V
Current Mode Control Provides Excellent Transient Response
High Maximum Duty Cycle (Typ 92%)
±1% Internal Voltage Reference
±2% RUN Pin Threshold with 100mV Hysteresis
Micropower Shutdown: IQ = 10μA
Programmable Operating Frequency (50kHz to 1MHz) with One External Resistor
Synchronizable to an External Clock Up to 1.3 x fOSC
User-Controlled Pulse Skip or Burst Mode? Operation
Internal 5.2V Low Dropout Voltage Regulator
Capable of Operating with a Sense Resistor for High Output Voltage Applications (VDS>36V)
Small 10-Lead MSOP Package
