Product Summary
The LTC3862IGN-1#PBF is a multi-phase current mode step-up DC/DC controller. Its applications include automotive, telecom and industrial power supplies.
Parametrics
LTC3862IGN-1#PBF absolute maximum ratings: (1)Input supply voltage: -0.3 to 40V; (2)INTVCC voltage: -0.3 to 11V; (3)RUN voltage: -0.3 to 8V; (4)Blank voltage: -0.3 to 3V; (5)Operating junction temperature range: -40 to 125℃.
Features
LTC3862IGN-1#PBF features: (1)Wide VIN range: 8.5V to 36V operation; (2)2-phase operation reduces input and output capacitance; (3)Fixed frequency, peak current mode control; (4)10V gate drive for high voltage MOSFETs; (5)Adjustable slope compensation gain; (6)Adjustable max duty cycle; (7)Adjustable leading edge blanking.

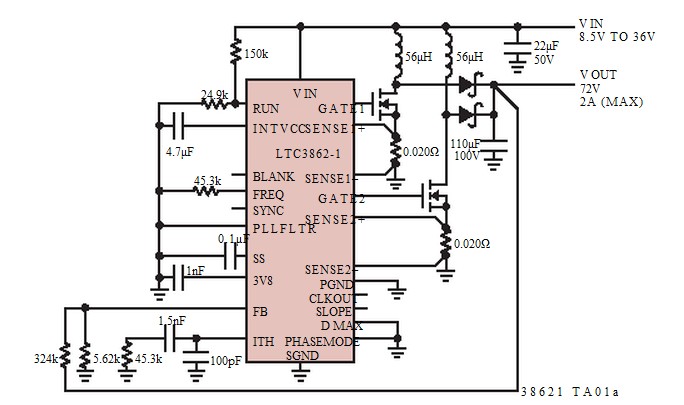

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LTC3862IGN-1#PBF |
|
IC REG CTRLR BST PWM CM 24-SSOP |
Data Sheet |
|
|
||||||
