Product Summary

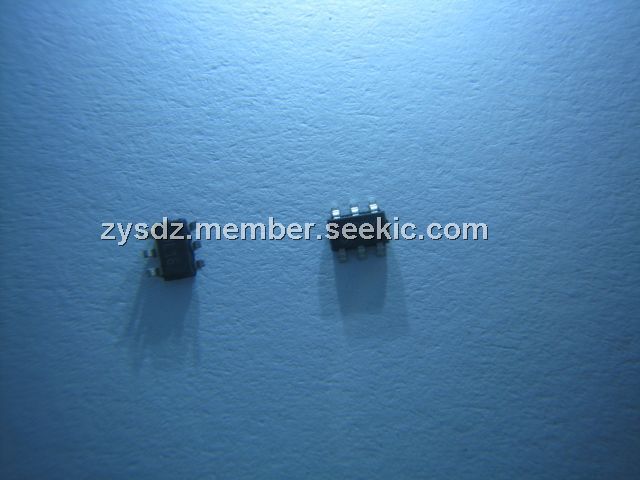

The LTC?6992 is a silicon oscillator with an easy-to-use analog voltage-controlled pulse width modulation (PWM) capability. The LTC6992 is part of the TimerBlox? family of versatile silicon timing devices.
A single resistor, RSET, programs the LTC6992’s internal master oscillator frequency. The output frequency is determined by this master oscillator and an internal frequency divider, NDIV, programmable to eight settings from 1 to 16384.
Among them if you have any need quote or problem, please could you tell us.
E-mail: abel.huang911@gamil.com
MSN:abel.huang@hotmail.com
Features
Pulse Width Modulation (PWM) Controlled by Simple 0V to 1V Analog Input
Four Available Options Define Duty Cycle Limits
– Minimum Duty Cycle at 0% or 5%
– Maximum Duty Cycle at 95% or 100%
Frequency Range: 3.81Hz to 1MHz
Configured with 1 to 3 Resistors
<1.7% Maximum Frequency Error
PWM Duty Cycle Error < 3.7% Maximum
Frequency Modulation (VCO) Capability
2.25V to 5.5V Single Supply Operation
115μA Supply Current at 100kHz
500μs Start-Up Time
CMOS Output Driver Sources/Sinks 20mA
–55°C to 125°C Operating Temperature Range
Available in Low Profile (1mm) SOT-23 (ThinSOT?) and 2mm × 3mm DFN
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LTC6991HS6#TRPBF |
|
IC OSC SILICON 977HZ TSOT23-6 |
Data Sheet |
|
|
||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||
 |
LTC6078 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||
 |
LTC6078ACMS8 |
|
IC OP AMP DUAL R-R I/O 8MSOP |
Data Sheet |
|
|
||||||||||
|
LTC6078ACMS8#PBF |
|
IC OP AMP DUAL R-R I/O 8MSOP |
Data Sheet |
|
|
||||||||||
|
LTC6078ACMS8#TR |
|
IC OP AMP DUAL R-R I/O 8MSOP |
Data Sheet |
|
|
||||||||||
|
LTC6078ACMS8#TRPBF |
|
IC OP AMP DUAL R-R I/O 8MSOP |
Data Sheet |
Negotiable |
|
||||||||||
|
LTC6078AHMS8 |
|
IC OP AMP DUAL R-R I/O 8MSOP |
Data Sheet |
|
|
||||||||||
