Product Summary

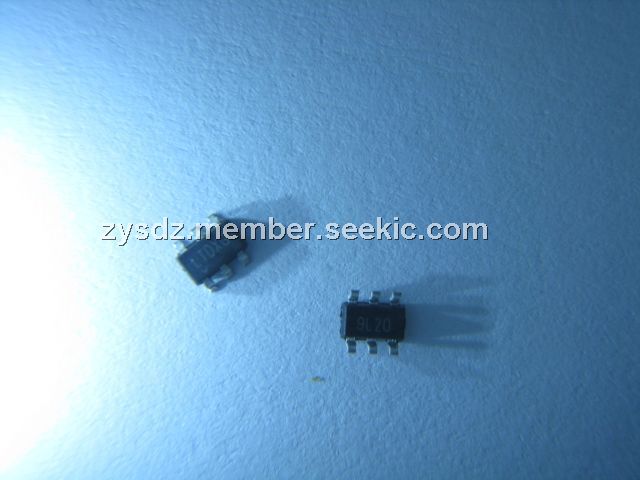

The LTC?6993 is a monostable multivibrator (also known as a “one-shot” pulse generator) with a programmable pulse width of 1μs to 33.6 seconds. The LTC6993 is part of the TimerBlox? family of versatile silicon timing devices.
A single resistor, RSET, programs an internal master oscillator frequency, setting the LTC6993’s time base. The output pulse width is determined by this master oscillator and an internal clock divider, NDIV , programmable to eight settings from 1 to 221
Among them if you have any need quote or problem, please could you tell us.
E-mail: abel.huang911@gamil.com
MSN:abel.huang@hotmail.com
Features
Pulse Width Range: 1μs to 33.6 Seconds
Configured with 1 to 3 Resistors
Pulse Width Max Error:
– 512μs
––
Four LTC6993 Options Available:
– Rising-Edge or Falling-Edge Trigger
– Retriggerable or Non-Retriggerable
Configurable for Positive or Negative Output Pulse
Fast Recovery Time
2.25V to 5.5V Single Supply Operation
70μA Supply Current at 10μs Pulse Width
500μs Start-Up Time
CMOS Output Driver Sources/Sinks 20mA
–55°C to 125°C Operating Temperature Range
Available in Low Profile (1mm) SOT-23 (ThinSOT?) and 2mm × 3mm DFN
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LTC6993CS6-1#TRPBF |
|
IC MONO MULTIVIBRATOR TSOT23-6 |
Data Sheet |
|
|
||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||
 |
LTC6078 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||
 |
LTC6078ACMS8 |
|
IC OP AMP DUAL R-R I/O 8MSOP |
Data Sheet |
|
|
||||||||||
|
LTC6078ACMS8#PBF |
|
IC OP AMP DUAL R-R I/O 8MSOP |
Data Sheet |
|
|
||||||||||
|
LTC6078ACMS8#TR |
|
IC OP AMP DUAL R-R I/O 8MSOP |
Data Sheet |
|
|
||||||||||
|
LTC6078ACMS8#TRPBF |
|
IC OP AMP DUAL R-R I/O 8MSOP |
Data Sheet |
Negotiable |
|
||||||||||
|
LTC6078AHMS8 |
|
IC OP AMP DUAL R-R I/O 8MSOP |
Data Sheet |
|
|
||||||||||
