Product Summary

The LX1688CPW-TR is a multiple lamp CCFL controller. Its applications include desttop LCD monitors, multiple lamp panels, low ambient light displays, high efficiency, lower cost than conventional, buch/royer inverter topologies, improved lamp strike capability.

Parametrics

LX1688CPW-TR absolute maximum ratings: (1)Supply voltage: 6.5V; (2)Digital inputs: -0.3 to VDD+0.5V; (3)Analog outputs: -0.1V to VDD+0.5V; (4)Storage temperature: -65 to 150℃; (5)Peak package solder reflow temp: 260℃.

Features

LX1688CPW-TR features: (1)Provision to synchronize lamp; (2)Current and frequency with other controllers; (3)Dimming with analog or digital; (4)Voltage limitig on step-up; (5)Transformer secondary winding; (6)Switched VDD output; (7)Micro-amp sleep mode.

Diagrams

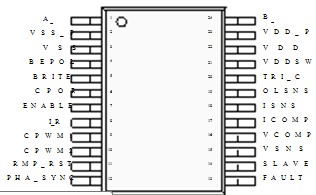

LX1688CPW-TR pin connection
