Product Summary

The MAX325EPA+ is a SPST Analog Switch. The MAX325EPA+ is precision, dual, SPST analog switches. The MAX325EPA+ is single-supply devices designed to operate from +2.7V to +16V. The MAX325EPA+ has one NO and one NC switch. Low power consumption (5μW) makes these parts ideal for battery-powered equipment. These switches offer low leakage currents (100pA max) and fast switching speeds (tON = 150ns max, tOFF = 100ns max). The applications of the MAX325EPA+ include Battery-Operated Systems, Sample-and-Hold Circuits, Heads-Up Displays, Guidance and Control Systems, Audio and Video Switching, Military Radios, Test Equipment and Communications Systems.

Parametrics

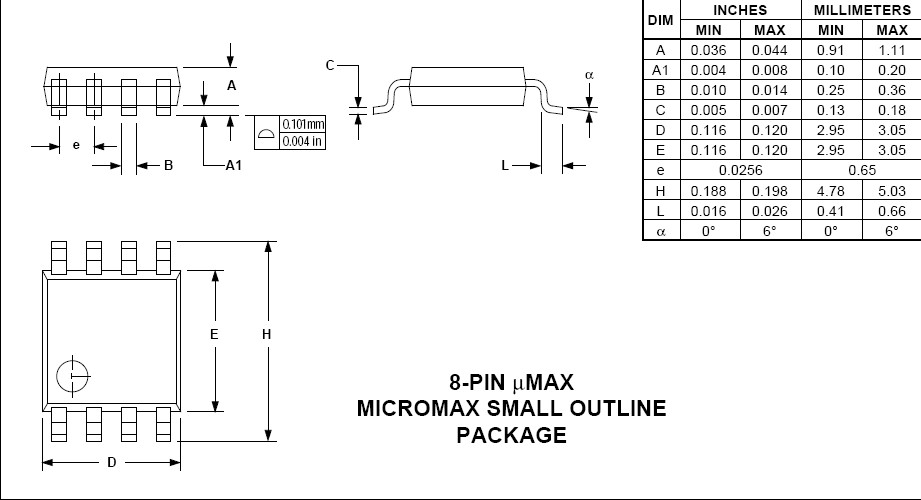

MAX325EPA+ absolute maximum ratings: (1)Voltage Referenced to GND V+: -0.3V to +17V; (2)IN_, COM_, NC_, NO_ (Note 1) : -0.3V to (V+ + 0.3V); (3)Continuous Current (any terminal) : 30mA; (4)Peak Current, COM_, NO_, NC_ (pulsed at 1ms, 10% duty cycle max) : 100mA; (5)ESD per Method 3015.7 : >2000V; (6)Continuous Power Dissipation Plastic DIP (derate 9.09mW/℃ above +70℃) : 727mW; (7)Narrow SO (derate 5.88mW/℃ above +70℃) : 471mW; (8)CERDIP (derate 8.00mW/℃ above +70℃) : 640mW; (9)μMAX (derate 4.10mW/℃ above +70℃) : 330mW; (10)Operating Temperature Ranges : -40℃ to +85℃; (11)Storage Temperature Range ： -65℃ to +150℃; (12)Lead Temperature (soldering, 10sec) : +300℃.

Features

MAX325EPA+ features: (1)Low On-Resistance (RON), 60Ωmax (33Ωtyp); (2)RON Matching Between Channels <2Ω; (3)RON Flatness <6ΩMax; (4)Guaranteed Charge Injection <5pC; (5)Single-Supply Operation (+2.7V to +16V); (6)Low Power Consumption, <5μW; (7)Low Leakage Current Over Temperature, <2.5nA at +85℃; (8)Fast Switching: tON <150ns, tOFF <100ns; (9)Guaranteed Break-Before-Make (MAX325 only); (10)TTL/CMOS Logic Compatible.
