Product Summary

The MAX5035DASA+T is a high-efficiency MAXpower step-down DC-DC converter. Its applications include automotive, consumer electronics, industrial and distributed power.

Parametrics

MAX5035DASA+T absolute maximum rating: (1)VIN: -0.3 to 80V; (2)SGND: -0.3 to +0.3V; (3)LX: -0.8 TO VIN+0.3V; (4)Continuous power dissipation: 727mW; (5)Operating temperature range: -40 to 125℃; (6)Storage temperature range: -65 to 150℃; (7)Junction temperature: 150℃; (8)Lead temperature: 300℃.

Features

MAX5035DASA+T features: (1)Wide 7.5V to 76V input voltage range; (2)Fixed and adjustable versions; (3)1A output current; (4)Efficiency up to 94%; (5)Internal 0.4Ω high-side DMOS FET; (6)270μA quiescent current at No load, 10μA shutdown current; (7)Internal frequency compensation; (8)Fixed 125kHz switching frequency.

Diagrams

MAX5035DASA+T pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

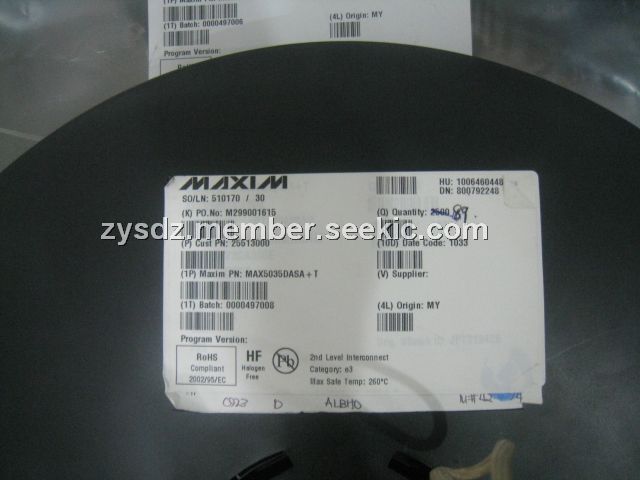

MAX5035DASA+T
MAX5035DASA+T

Maxim Integrated Products

DC/DC Switching Converters 1A 76V MAXPower Step-Down

Data Sheet

0-2085: $2.36
2085-2500: $2.36
