Product Summary

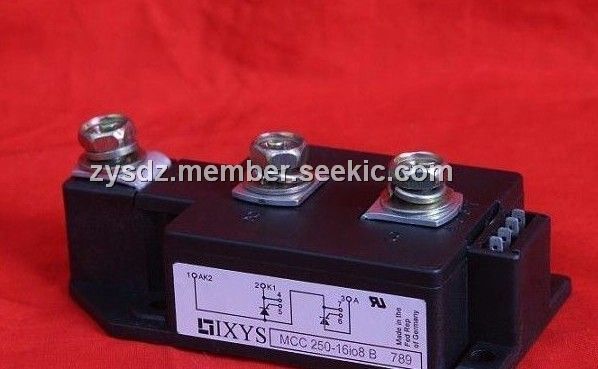

The MCC250-16io8 is a Thyristor/Diode Module. The applications of the MCC250-16io8 include Motor control, Power converter, Heat and temperature control for industrial furnaces and chemical processes, Lighting control, Contactless switches.
Parametrics
MCC250-16io8 absolute maximum ratings: (1)IRRM TVJ = TVJM; VR = VRRM; VD = VDRM: 70mA; (2)IDRM: 40mA; (3)VT, VF IT /IF = 600 A; TVJ = 25℃: 1.36 V; (4)VT0 For power-loss calculations only (TVJ = 140℃): 0.85 V; (5)rT: 0.82 mΩ; (6)VGT VD = 6 V; TVJ = 25℃: 2V; (7)TVJ = -40℃: 3V; (8)IGT VD = 6 V; TVJ = 25℃: 150 mA; (9)TVJ = -40℃: 200mA; (10)VGD TVJ = TVJM; VD = 2/3 VDRM: 0.25 V; (11)IGD: 10mA.
Features
MCC250-16io8 features: (1)International standard package; (2)Direct copper bonded Al2O3 -ceramic base plate; (3)Planar passivated chips; (4)Isolation voltage 3600V; (5)UL registered, E 72873; (6)Keyed gate/cathode twin pins.
