Product Summary

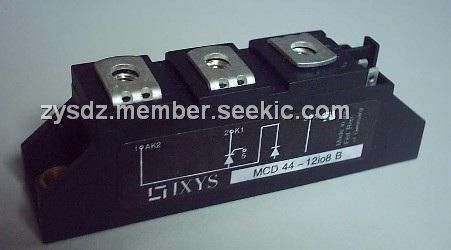

The MCD44-12io8B is a Thyristor/Diode Module. The applications of the MCD44-12io8B include DC motor control, Softstart AC motor controller, Light, heat and temperature control.
Parametrics
MCD44-12io8B absolute maximum ratings: (1)ITRMS, IFRMS TVJ = TVJM: 80A; (2)ITAVM, IFAVM: 51A; (3)ITSM, IFSM TVJ = 45℃; t = 10 ms (50 Hz), sine: 1150A; (4)PGM TVJ = TVJM; tP = 30 μs: 10 W; (5)IT = ITAVM; tP = 300 μs: 5W; (6)PGAV: 0.5W; (7)VRGM: 10V; (8)TVJ: -40 to +125℃; (9)TVJM: 125℃; (10)Tstg: -40 to +125℃.
Features
MCD44-12io8B features: (1)International standard package,JEDEC TO-240 AA; (2)Direct copper bonded Al2O3-ceramic base plate; (3)Planar passivated chips; (4)Isolation voltage 3600 V; (5)UL registered, E 72873; (6)Gate-cathode twin pins for version 1B.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MCD44-12io8B |
Ixys |
Discrete Semiconductor Modules 44 Amps 1200V |
Data Sheet |
Negotiable |
|
||||
