PCA9554PW

16-pin CMOS devices, 6V, 85mA, SSOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.45~0.55 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.45~0.55

PartNumber:: PCA9554PW

Brand:: NXP Semiconductors - nxp | Pack: SSOP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Zhao's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-29

From Other Seller

Part Number:PCA9554PW
US $0.45 - 0.55
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
A50L-0001-0175

US $100.00 - 100.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

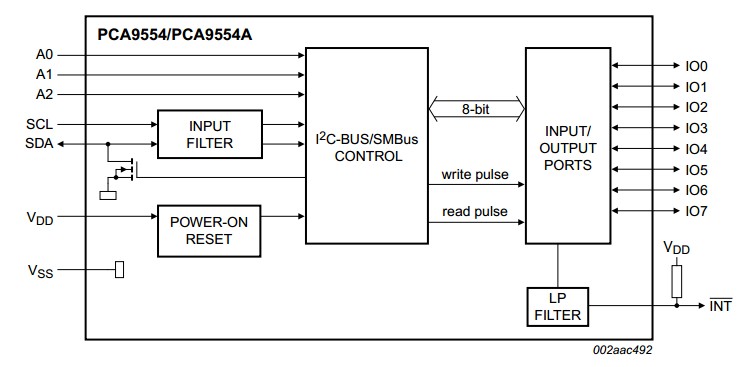

The PCA9554PW is a 16-pin CMOS device that provides 8 bits of general purpose parallel input/output expansion for I2C-bus/SMBus applications.

Parametrics

PCA9554PW absolute maximum ratings: (1)VDD, supply voltage: 6V; (2)II, input current: ±20mA; (3)VI/O, voltage on an input/output pin: 5.5V; (4)IO(IOn), output current on pin ION: ±50mA; (5)IDD, supply current: 85mA; (6)ISS, ground supply current: 100mA; (7)Ptot, total power dissipation: 200mW; (8)Tstg, storage temperature: -65 to 150℃; (9)Tamb, ambient temperature: -40 to 85℃.

Features

PCA9554PW features: (1)Operating power supply voltage range of 2.3V to 5.5V; (2)5V tolerant I/OS; (3)Polarity inversion register; (4)Active LOW interrupt output; (5)Low standby current; (6)Noise filter on SCL/SDA inputs; (7)No glitch on power-up; (8)Internal power-on reset; (9)8I/O pins which default to 8 inputs; (10)0 to 400kHz clock frequency.
