Product Summary
The SKD110-16 is a Power Bridge Rectifier. The applications of the SKD110-16 include three phase rectifiers for power supplies, Input rectifiers for variable freqency drives, Rectifiers for DC motor field supplies, Battery charger rectifiers.
Parametrics
SKD110-16 absolute maximum ratings: (1)ID TC=25℃: 151A; (2)IFSM Tvj=25℃;10ms: 1200A; (3)VF Tvj=25℃; IF=300A: max.1.9V; (4)Tvj: -40 to 150℃; (5)Tstg: -40 to 125℃.
Features
SKD110-16 features: (1)Robust plastic case with screw terminals; (2)Large, isolated base plate; (3)Blocking voltage up to 1800V; (4)High surge currents; (5)Three phase brige rectifier; (6)Easy chassis mounting; (7)UL recognized, file no. E 63 532.

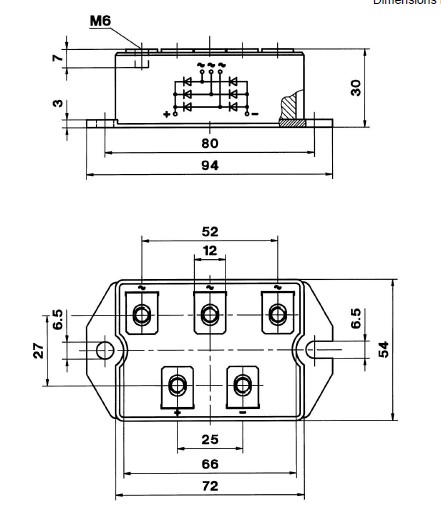

Diagrams
