Product Summary

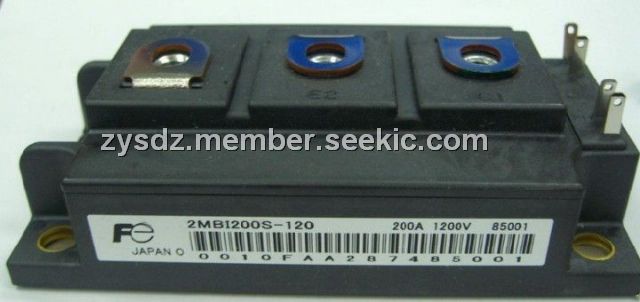

The 2MBI200S-120 is an IGBT Module. The applications of the 2MBI200S-120 include Inverter for Motor drive, AC and DC Servo drive amplifier, Uninterruptible power supply and Industrial machines, such as Welding machines.
Parametrics
2MBI200S-120 absolute maximum ratings: (1)Collector-Emitter Voltage: 1200 V; (2)Gate -Emitter Voltage: ± 20 V; (3)Collector Current: 200A; (4)Max. Power Dissipation: 1500 W; (5)Operating Temperature: +150 ℃; (6)Storage Temperature: -40 ~ +125 ℃.
Features
2MBI200S-120 features: (1)High speed switching; (2)Voltage drive; (3)Low inductance module structure.
Diagrams
 |
