Product Summary

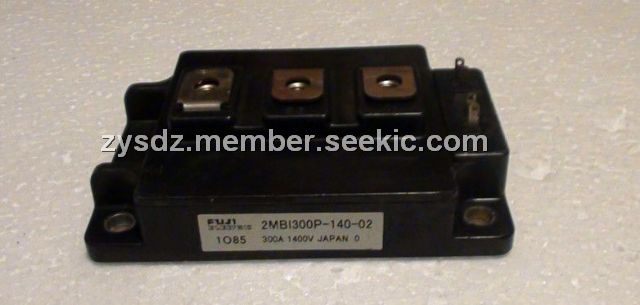

The 2MBI300P-140-02 is an IGBT module . The applications of the 2MBI300P-140-02 include General purpose inverter, AC and DC Servo drive amplifier, Uninterruptible power supply.

Parametrics

2MBI300P-140-02 absolute maximum ratings: (1)Collector-Emitter voltage VCES: 1400V; (2)Gate-Emitter voltage VGES: ±20V; (3)Collector current IC: 400A; (4)Collector Power Dissipation PC: 2500W; (5)Junction temperature Tj: 150℃; (6)Storage temperature: -40 to 150℃.

Features

2MBI300P-140-02 features: (1)Small temperature dependence of the turn-off switching loss; (2)Easy to connect in parallel; (3)Wide RBSOA (square up to 2 time of rated current) and high shortcircuit withstand capability; (4)Low loss and soft-switching (reduction of EMI noise).

Diagrams

2MBI300P-140-02 block diagram
