Product Summary
The 7MBR30SA060 is an IGBT module.
Parametrics
7MBR30SA060 absolute maximum ratings: (1) Collector-emitter voltage : 600V; (2) Gate-emitter voltage : ±20 V; (3) Collector current : 30 A; (4) Collector power dissipation : 120W; (5) Operating Junction temperature : +150℃; (6) Storage temperature : -40 to +125℃.
Features
7MBR30SA060 features: (1) Zero gate voltage Collector current: 1.0mA; (2) Gate-Emitter leakage current: 200nA; (3)Gate-Emitter threshold voltage : 5.5 to 8.5V; (4) Collector-Emitter saturation voltage : 1.8V; (5) Input capacitance : 3000pF; (6) Reverse recovery time : 300nS.

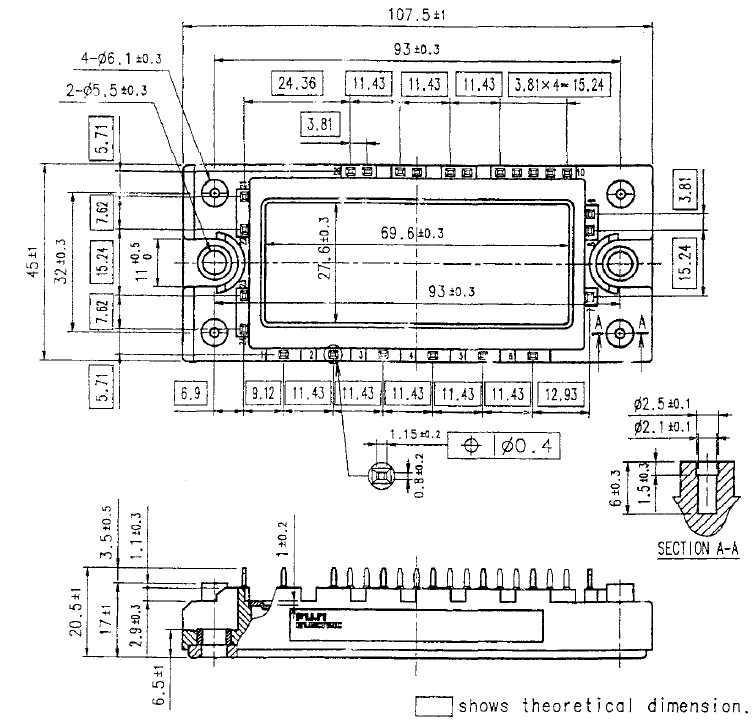

Diagrams
